Question: Simplify Boolean expression using k-maps. Can someone thoroughly explain how to use K-map 8. (1 pt) Simplify the Boolean function using K-map. CD 00 01

Simplify Boolean expression using k-maps. Can someone thoroughly explain how to use K-map

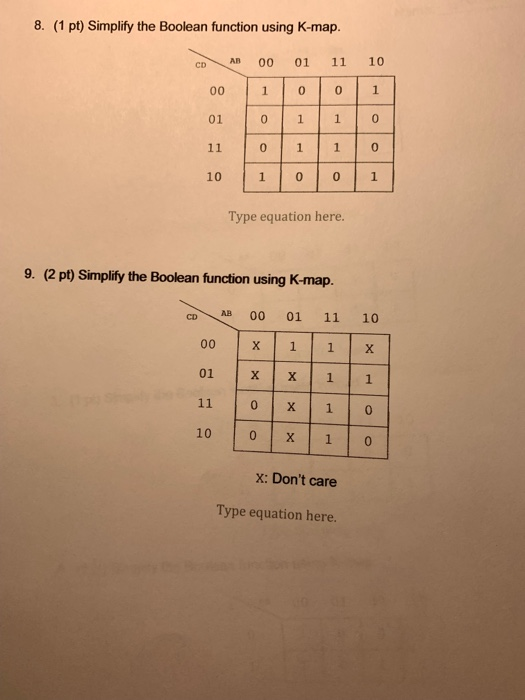

8. (1 pt) Simplify the Boolean function using K-map. CD 00 01 11 10 00 1 0 0 1 01 0 11 0 10 1 001 Type equation here 9. (2 pt) Simplify the Boolean function using K-map. CD A 00 01 11 10 11 0 X10 10 0X1 x: Don't care Type equation here

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

(PQRST) = m(0,2,4,7,8, 10, 12, 16, 18, 20, 23, 24, 25, 26, 27, 28) ST 00 01 11 10 01 11 10 GR ST 00 OR 00 00 01 ol 011 11 10 10 PO ST RT ORST POR Finally the minimal expression of the given boolean...

Draw the logic circuit of number 4 and 5. 1. Plot the function in the map to simplify it. Consider the l's to obtain the SOP expression for the NAND-NAND network. Do the same with map of the NOR-NOR...

9- Use 4-four variable K-maps to map a six variable function: f(x,y,z,u,v,w) = m(0,5,7,13,15,16,21,23,29,31,32,36, 40, 44,48,52,56,60 ) Simplify the function to the simplest form by combining all...

Question 5 (a) Use the rules of boolean algebra to simplify the following boolean expressions: i. abl + b)(6 + b) i (a + b) + (6 + ac)(a + 5) (6] (b) Use the duality principle to find out the dual of...

QUIZ... Let D be a poset and let f : D D be a monotone function. (i) Give the definition of the least pre-fixed point, fix (f), of f. Show that fix (f) is a fixed point of f. [5 marks] (ii) Show that...

undefined 20. 0.62510 in base 2 is: {{6 points}} a. 101 b. 0.101 C. 0.1001 d. 1001 21. Show how the base 10 number 57.625 would be stored as a binary number in a computer using IEEE-754 single...

show work please 21. Show how the base 10 number 57.625 would be stored as a binary number in a computer using IEEE-754 single precision. {{8 points}} 22. Show the groups on the following Kmap and...

For monotone functions f, f0: P Q between posets (P, vP ) and (Q, vQ), let f v f(i) Prove that the binary relation v is a partial order. [3 marks] (ii) For monotone functions between posets p : P 0...

The SOP Karnaugh map (map of 1's) for a Boolean function can be described as . Note that for the set of variables in the Boolean expression, and can never be 1 at the same time. Plot the 1 's on the...
