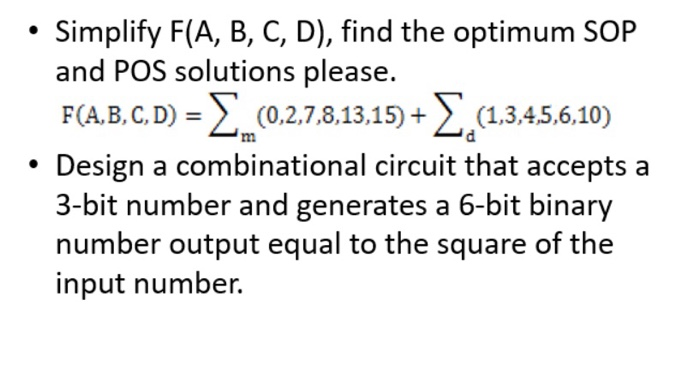

Question: Simplify F(A, B, C, D), find the optimum SOP and POS solutions please. F(A.B.CD-(0.2.7 8.13.15) +1;1.3.456.10) Design a combinational circuit that accepts a 3-bit number

Simplify F(A, B, C, D), find the optimum SOP and POS solutions please. F(A.B.CD-(0.2.7 8.13.15) +1;1.3.456.10) Design a combinational circuit that accepts a 3-bit number and generates a 6-bit binary number output equal to the square of the input number
