Question: Simplify the following functions using K - maps, and then derive the corresponding simplified Boolean expressions. Note that d stands for don t - care

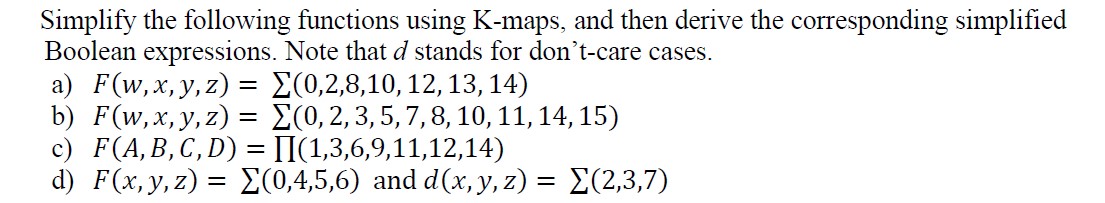

Simplify the following functions using K-maps, and then derive the corresponding simplified
Boolean expressions. Note that d stands for dont-care cases.
a)F(w,x,y,z)=\Sigma (0,2,8,10,12,13,14)
b)F(w,x,y,z)=\Sigma (0,2,3,5,7,8,10,11,14,15)
c)F(A,B,C,D)=\Pi (1,3,6,9,11,12,14)
d)F(w,x,y,z)=\Sigma (0,4,5,6) and d(x,y,z)=\Sigma (2,3,7)
 Simplify the following functions using K-maps, and then derive the corresponding
