Simulation Exercise $1$: Process Management Simulation

Goal: To simulate five process management functions: process creation, replacing the current process image with a new process image, process state transition, process scheduling, and context switching.

You will use Linux system calls such as fork$(),$ wait$(),$ pipe$(),$ and sleep$().$ Read man pages of these system calls for details.

This simulation exercise consists of three types of Linux processes: commander, process manager, and reporter. There is one commander process $($this is the process that starts your simulation$),$ one process manager process that is created by the commander process, and a number of reporter processes that get created by the process manager, as needed.

Commander Process

The commander process first creates a pipe and then a process manager process. It then repeatedly reads commands $($one command per second$)$ from the standard input and passes them to the process manager process via the pipe. There are four types of commands:

Q: End of one unit of time.

U: Unblock the first simulated process in blocked queue.

P: Print the current state of the system.

T: Print the average turnaround time, and terminate the system.

Command $T$ appears exactly once, being the last command.

Simulated Process

Process management simulation manages the execution of simulated processes. Each simulated process is comprised of a program that manipulates $($sets$/$updates$)$ the value of a single integer variable. Thus the state of a simulated process at any instant is comprised of the value of its integer variable and the value of its program counter. A simulated process' program consists of a sequence of instructions. There are seven types of instructions as follows:

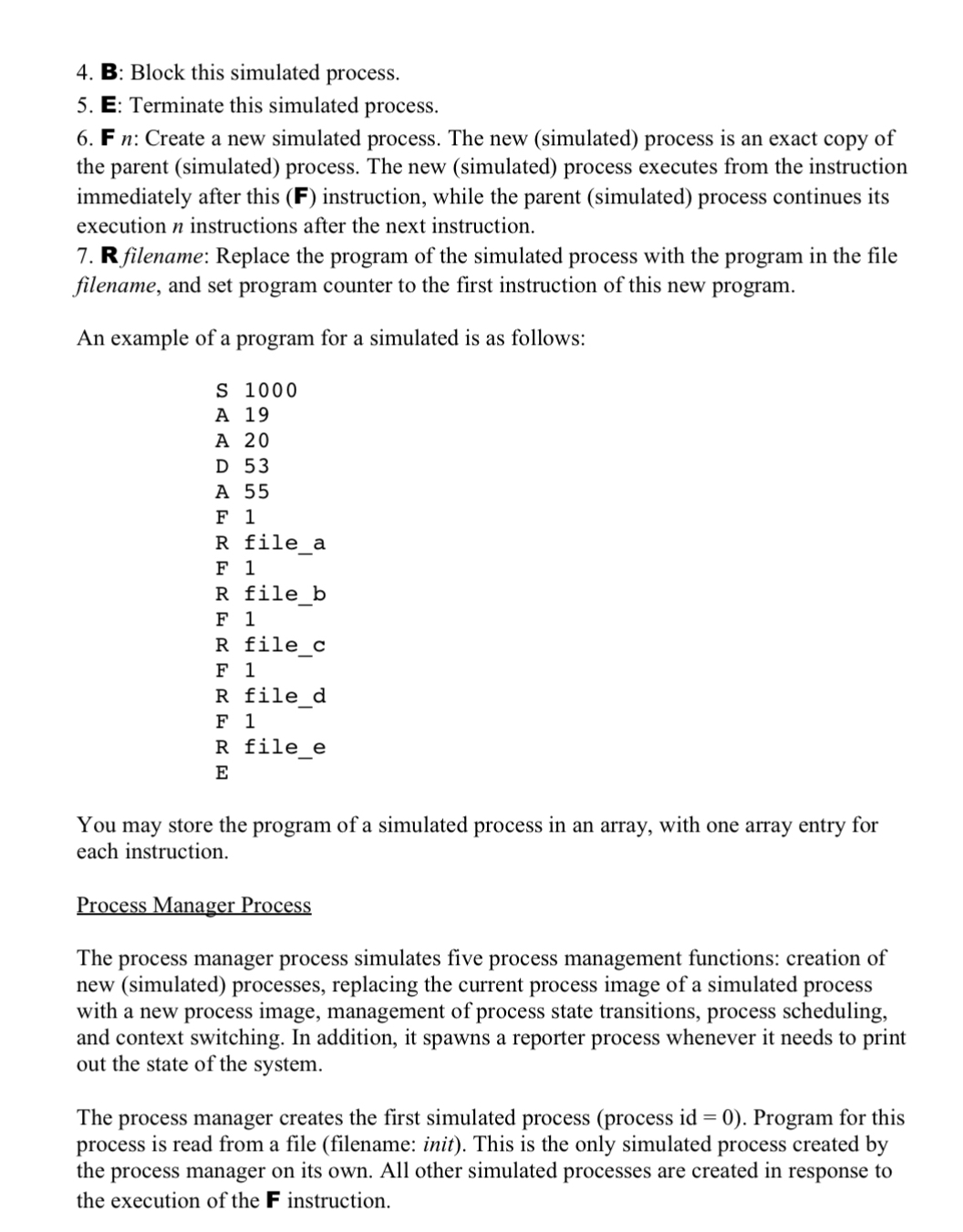

$Sn$ : Set the value of the integer variable to $n,$ where $n$ is an integer.

A $n$ : Add $n$ to the value of the integer variable, where $n$ is an integer.

D $n$ : Subtract $n$ from the value of the integer variable, where $n$ is an integer.

B: Block this simulated process.

E: Terminate this simulated process.

$Fn$ : Create a new simulated process. The new $($simulated$)$ process is an exact copy of the parent $($simulated$)$ process. The new $($simulated$)$ process executes from the instruction immediately after this $(F)$ instruction, while the parent $($simulated$)$ process continues its execution $n$ instructions after the next instruction.

$R$ filename: Replace the program of the simulated process with the program in the file filename, and set program counter to the first instruction of this new program.

An example of a program for a simulated is as follows:

$\backslash$table$[[$S$,1000],[$A$,19],[$A$,20],[$D $53,],[$A $55,],[$F $1,],[$R$,$file$\_$a$],[$F $1,],[$R$,$file$\_$b$],[$F $1,],[$R file$\_$C$,],[$F $1,],[$R file$\_$d$,],[$F $1,],[$R file$\_$e$,],[$E$,]]$

You may store the program of a simulated process in an array, with one array entry for each instruction.

Process Manager Process

The process manager process simulates five process management functions: creation of new $($simulated$)$ processes, replacing the current process image of a simulated process with a new process image, management of process state transitions, process scheduling, and context switching. In addition, it spawns a reporter process whenever it needs to print out the state of the system.

The process manager creates the first simulated process $($process id $=0).$ Program for this process is read from a file $($filename: init$).$ This is the only simulated process created by the process manager on its own. All other simulated processes are created in response to the execution of the $F$ instruction.
