Question: Situation 2 : A ) = ( 2 4 8 MPa column carry an axial compression load of 9 0 0 k N dead load

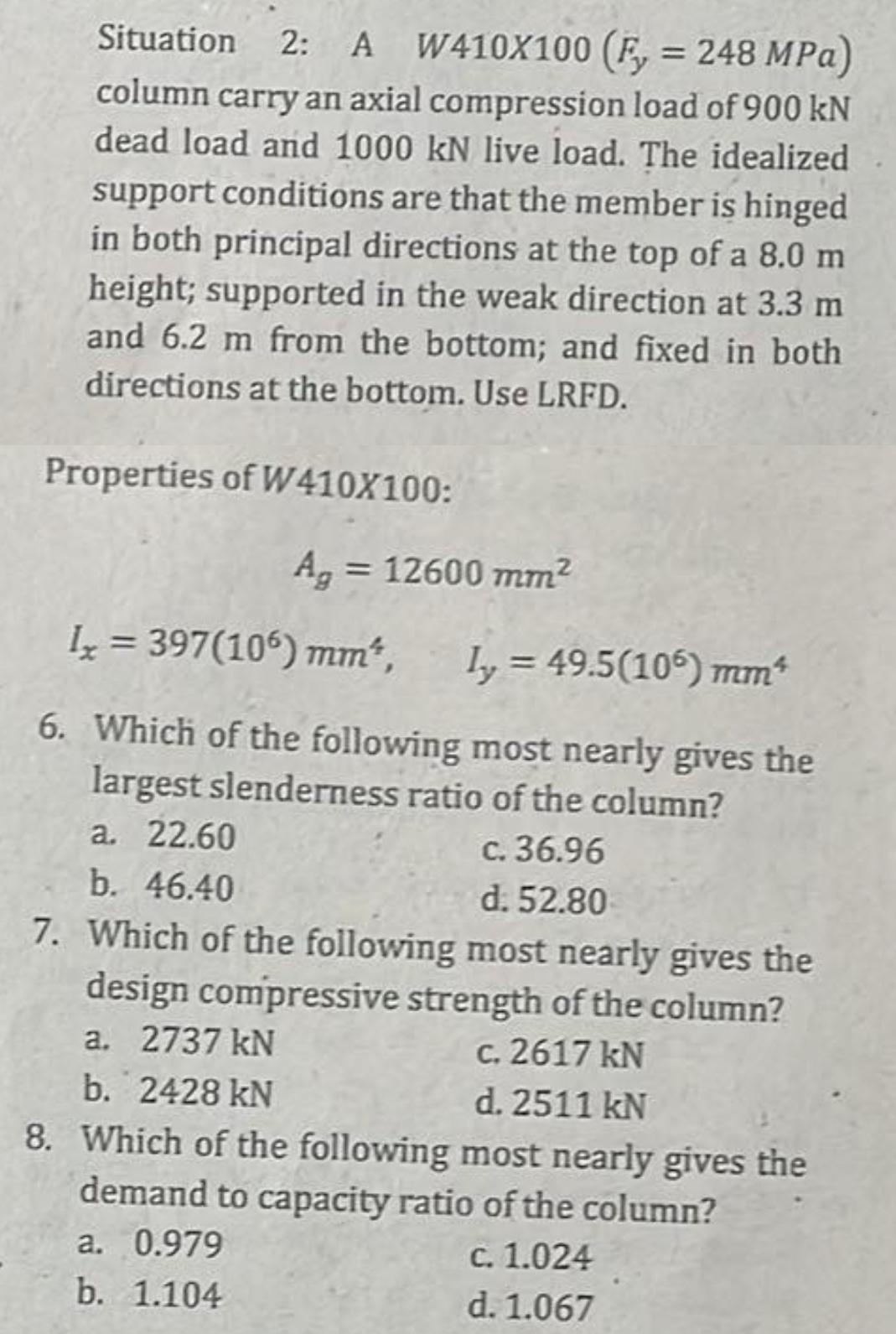

Situation 2: A )=(248MPa column carry an axial compression load of 900kN dead load and 1000kN live load. The idealized support conditions are that the member is hinged in both principal directions at the top of a 8.0m height; supported in the weak direction at 3.3m and 6.2m from the bottom; and fixed in both directions at the bottom. Use LRFD.
Properties of W410100 :
Ag=12600mm2
Ix=397(106)mm4,Iy=49.5(106)mm4
Which of the following most nearly gives the largest slenderness ratio of the column?
a.22.60
c.36.96
b.46.40
d.52.80
Which of the following most nearly gives the design compressive strength of the column?
a.2737kN
c.2617kN
b.2428kN
d.2511kN
Which of the following most nearly gives the demand to capacity ratio of the column?
a.0.979
c.1.024
b.1.104
d.1.067
Situation 2 : A ) = ( 2 4 8 MPa column carry an
