Question: Situation 3 . Using Method of Consistent Deformation, Identify the following, refer to the figure shown below. Assume k = 1 0 , 0 0

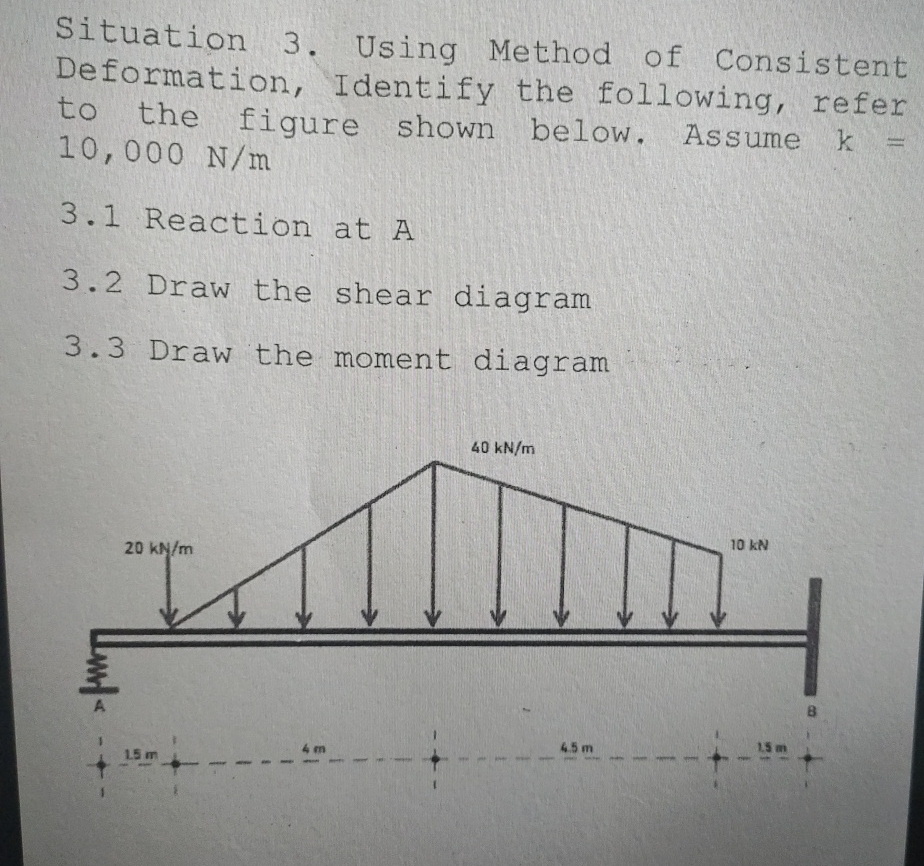

Situation 3. Using Method of Consistent Deformation, Identify the following, refer to the figure shown below. Assume k=10,000Nm
3.1 Reaction at A
3.2 Draw the shear diagram
3.3 Draw the moment diagram
Situation 3 . Using Method of Consistent

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
