Question: Sketch the failure ( yield ) envelopes below the failure criteria a . Where does fracture mechanics ( crack growth ) enter into this logic

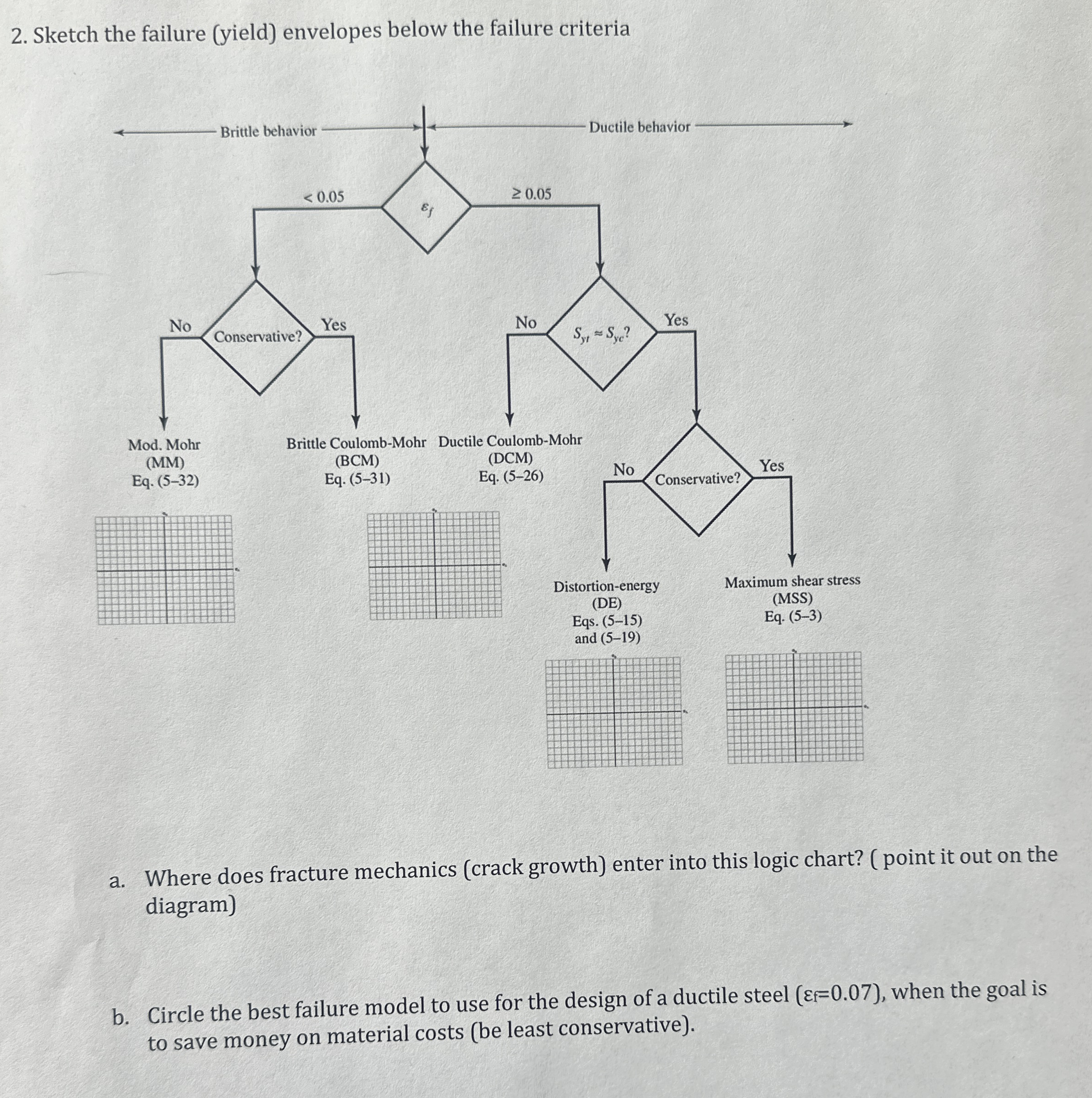

Sketch the failure (yield) envelopes below the failure criteria
a. Where does fracture mechanics (crack growth) enter into this logic chart? (point it out on the diagram)
b. Circle the best failure model to use for the design of a ductile steel
Sketch the failure ( yield ) envelopes below the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
