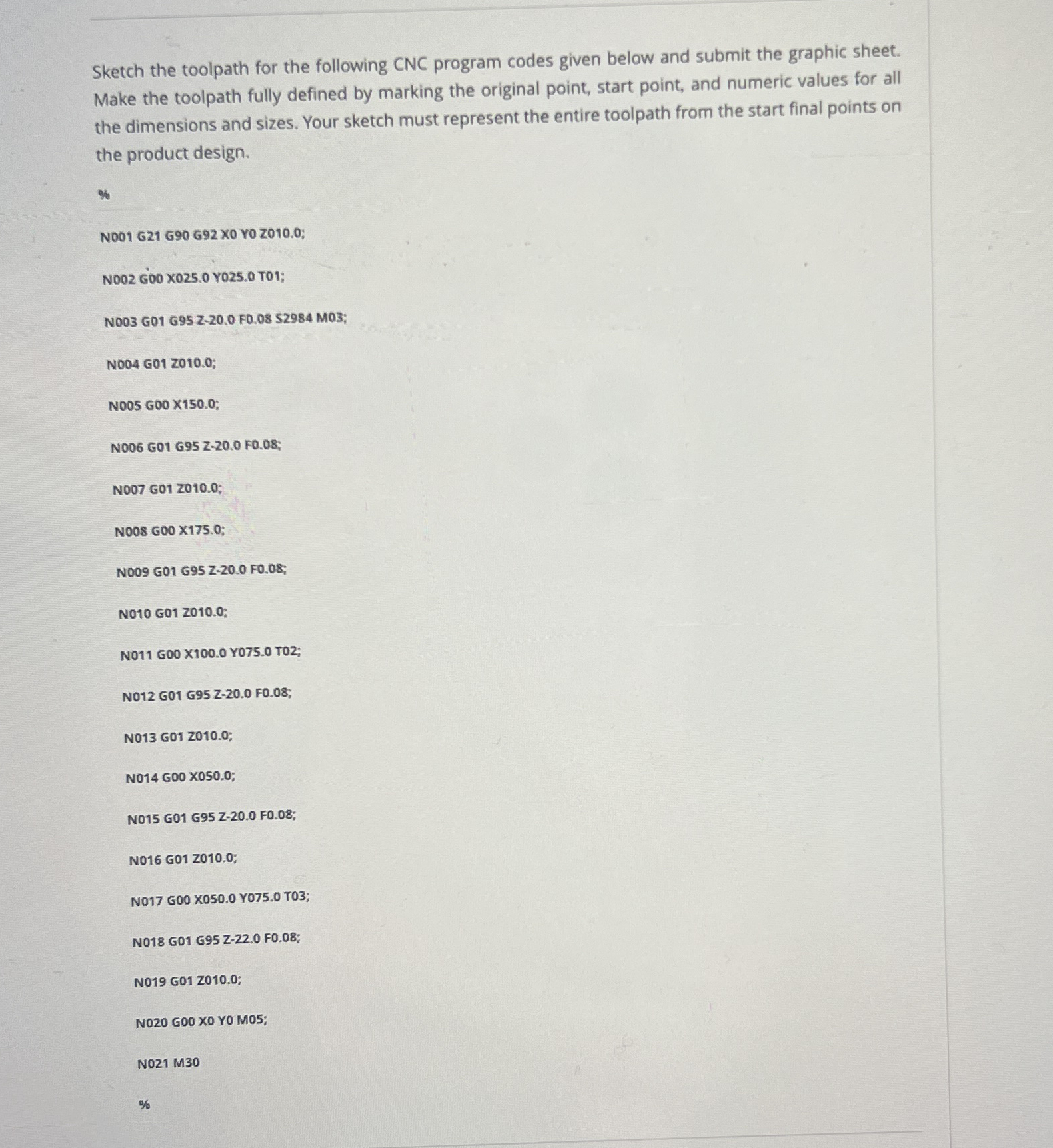

Sketch the toolpath for the following CNC program codes given below and submit the graphic sheet.

Make the toolpath fully defined by marking the original point, start point, and numeric values for all

the dimensions and sizes. Your sketch must represent the entire toolpath from the start final points on

the product design.

$\%$

$N001G21G90G92XOY0Z010\mathrm{.}0$;

$N002G00X025\mathrm{.}0Y025\mathrm{.}0T01$;

$N003G01G95Z-20\mathrm{.}0F0\mathrm{.}0852984M03$;

N$004$ G$01$ Z$010\mathrm{.}0$;

N$005$ G$00$ X$150\mathrm{.}0$;

N$006$ G$01$ G$95$ Z$-20\mathrm{.}0$ F$0\mathrm{.}08$;

N$007$ G$01$ Z$010\mathrm{.}0$;

N$008$ G$00$ X$175\mathrm{.}0$;

N$009$ G$01$ G$95$ Z$-20\mathrm{.}0$ F$0\mathrm{.}08$;

N$010$ G$01$ Z$010\mathrm{.}0$;

N$011$ G$00$ X$100\mathrm{.}0$ Y$075\mathrm{.}0$ T$02$;

N$012$ G$01$ G$95$ Z$-20\mathrm{.}0$ F$0\mathrm{.}08$;

N$013$ G$01$ Z$010\mathrm{.}0$;

N$014$ G$00$ X$050\mathrm{.}0$;

N$015$ G$01$ G$95$ Z$-20\mathrm{.}0$ F$0\mathrm{.}08$;

N$016$ G$01$ Z$010\mathrm{.}0$;

N$017$ G$00$ X$050\mathrm{.}0$ Y$075\mathrm{.}0$ T$03$;

N$018$ G$01$ G$95$ Z$-22\mathrm{.}0$ F$0\mathrm{.}08$;

N$019$ G$01$ Z$010\mathrm{.}0$;

N$020$ G$00$ XO YO M$05$;

N$021$ M$30$

$\%$
