Question: Slope - Deflection Method - The figure below shows cantilever beam and it's loading which has unyield supports. EI is constant over the entire span

Slope - Deflection Method

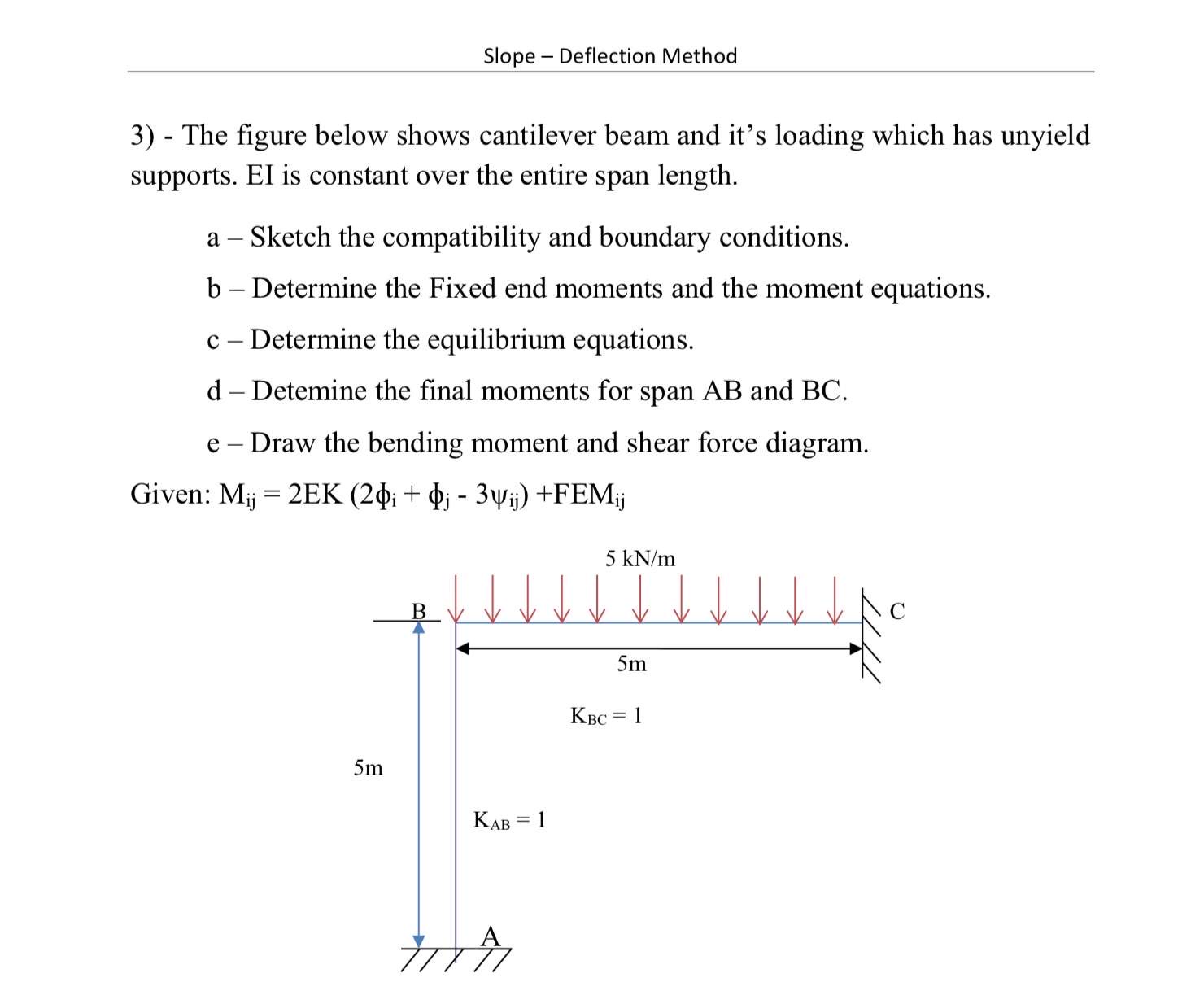

- The figure below shows cantilever beam and it's loading which has unyield supports. EI is constant over the entire span length.
a - Sketch the compatibility and boundary conditions.
b- Determine the Fixed end moments and the moment equations.
c- Determine the equilibrium equations.
d- Detemine the final moments for span AB and BC.
e- Draw the bending moment and shear force diagram.
Given: Mij=2EK(2i+j-3ij)+FEMij
Slope - Deflection Method - The figure below

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
