Solve 2,3&4 please

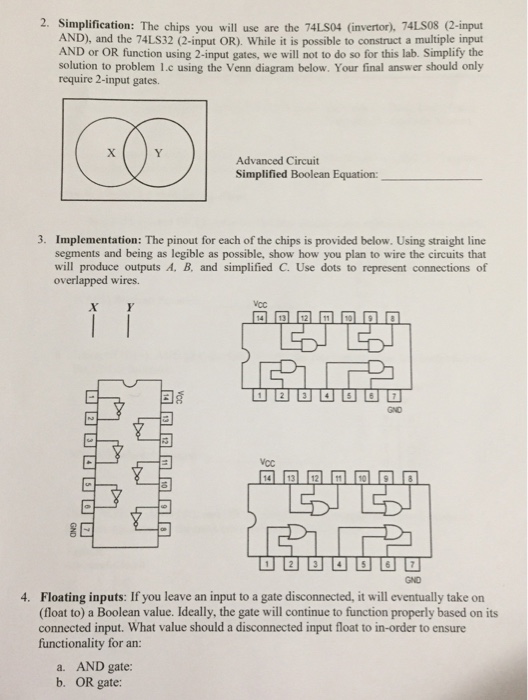

2. Simplification: The chips you will use are the 74LS04 (invertor), 74LS08 (2-imput AND), and the 74LS32 (2-input OR). While it is possible to construct a multiple input AND or OR function using 2-input gates, we will not to do so for this lab. Simplify the solution to problem l.c using the Venn diagram below. Your final answer should only require 2-input gates. Advanced Circuit Simplified Boolean Equation: 3. Implementation: The pinout for each of the chips is provided below. Using straight line segments and being as legible as possible, show how you plan to wire the circuits that will produce outputs A. B, and simplified C. Use dots to represent connections of overlapped wires. X, Y GND GND Floating inputs: If you leave an input to a gate disconnected, it will eventually take on (float to) a Boolean value. Ideally, the gate will continue to function properly based on its connected input. What value should a disconnected input float to in-order to ensure functionality for an: 4. a. AND gate: b. OR gate
