Question: Solve all the problems Problem_#03] If the output is a 1 for the decoders shown below, Find the input given that As is the MSB.

Solve all the problems

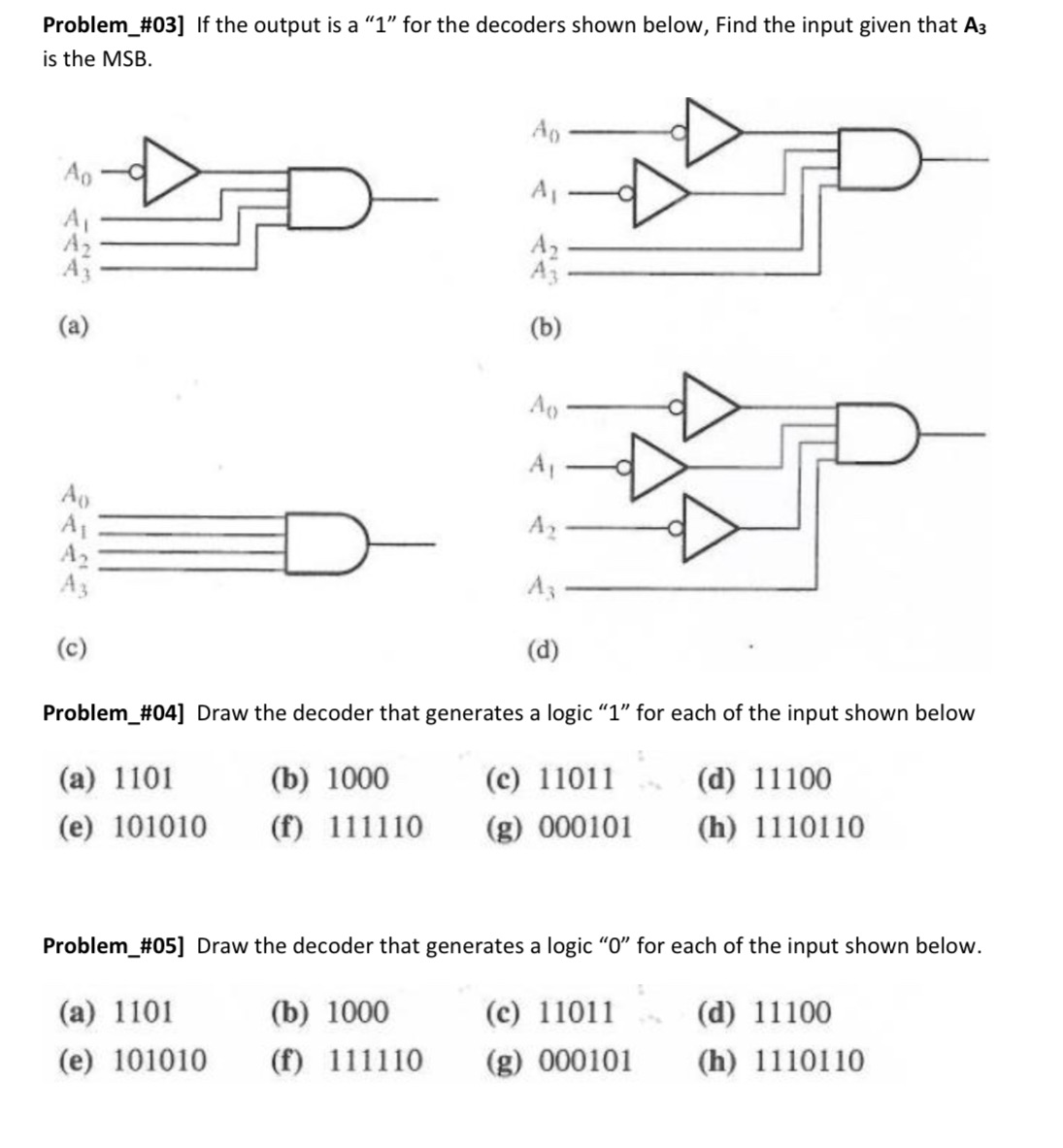

Problem_#03] If the output is a \"1\" for the decoders shown below, Find the input given that As is the MSB. f'l A J\": .".2 ;1 3 A : (a) (b) Ay A Ay Ay A 1, Ay Aq (c) (d) Problem_#04] Draw the decoder that generates a logic \"1\" for each of the input shown below (a) 1101 (b) 1000 () 11011 (d) 11100 (e) 101010 (f) 111110 (g) 000101 (h) 1110110 Problem_#05] Draw the decoder that generates a logic \"0\" for each of the input shown below. (a) 1101 (b) 1000 (e) 11011 (d) 11100 (e) 101010 (f) 111110 (g) 000101 (h) 1110110
