Question: solve by force method The contilevered beam is supported at one end by a 1 2 . 5 - m m - diameter suspender rodAC

solve by force method

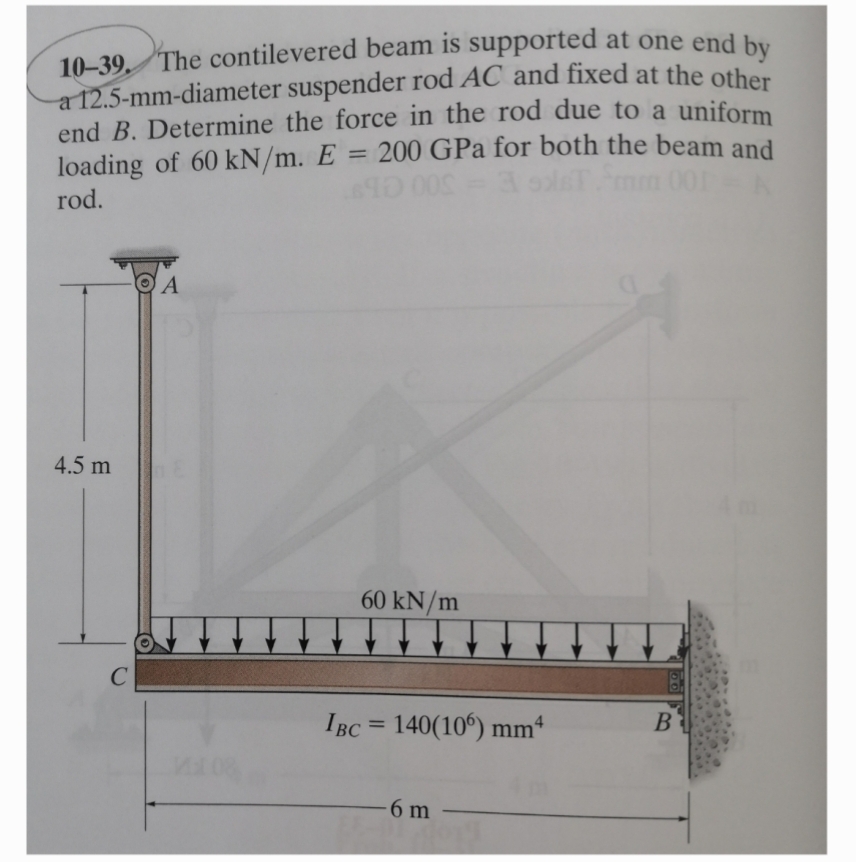

The contilevered beam is supported at one end by a 12.5-mm-diameter suspender rodAC and fixed at the other end B. Determine the force in the rod due to a uniform loading of 60kNm.E=200GPa for both the beam and rod.
solve by force method The contilevered beam is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
