solve by hand with plot

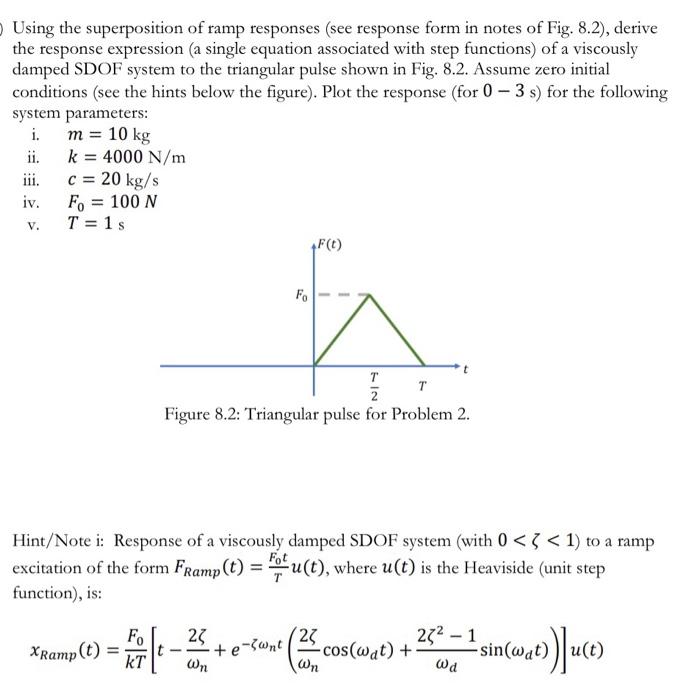

Using the superposition of ramp responses (see response form in notes of Fig. 8.2), derive the response expression (a single equation associated with step functions) of a viscously damped SDOF system to the triangular pulse shown in Fig. 8.2. Assume zero initial conditions (see the hints below the figure). Plot the response (for 03s ) for the following system parameters: i. m=10kg ii. k=4000N/m iii. c=20kg/s iv. F0=100N v. T=1s Figure 8.2: Triangular pulse for Problem 2. Hint/Note i: Response of a viscously damped SDOF system (with 0
