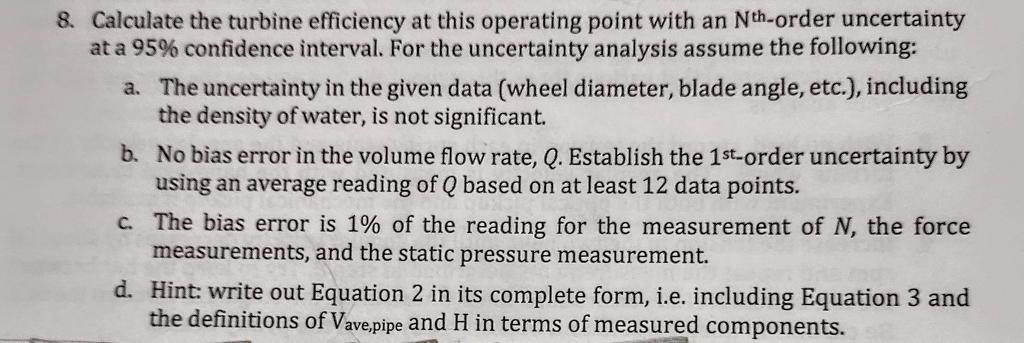

Solve for question 8 (4 parts)

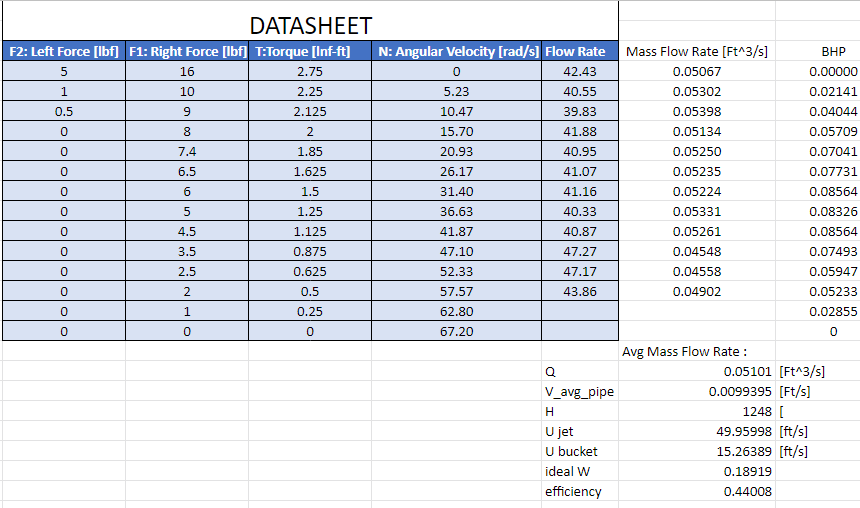

Lab data

Employing the linear momentum equation for a fluid control volume, the force exerted on each bucket is given by: F=Q(VjetVbucket)(1cos) [Eq. 1] where F= force exerted on the bucket = density of the fluid Q= volume flow rate of fluid Vjet=ujeti^= velocity of the fluid jet Vbucket=ubucketi^=0.5DT= bucket linear speed, also tangential wheel speed = blade angle of the buckets =2N/60= angular velocity of the turbine wheel N = angular velocity of the turbine wheel in rpm DT= effective diameter of the turbine wheel Given Data: DTDPipeDBV/h=bladeangleofthebuckets=diameterofthePeltonwheel=pipediameterupstreamofthenozzle=diameterofpronybrakewheel=watervolumeincollectiontankperunitheightonthesightglass=0.215ft3/in2=170=10.0inches=1.5inches=6.0inches
