Question: Solve for R _ Bx and R _ By . I know it involves using the acceleration at center of gravity. But am lost otherwise

Solve for R_Bx and R_By. I know it involves using the acceleration at center of gravity. But am lost otherwise on how to put together the equation to solve for both R_Bx and R_By. The problem is below. USE VECTORS PLEASE.

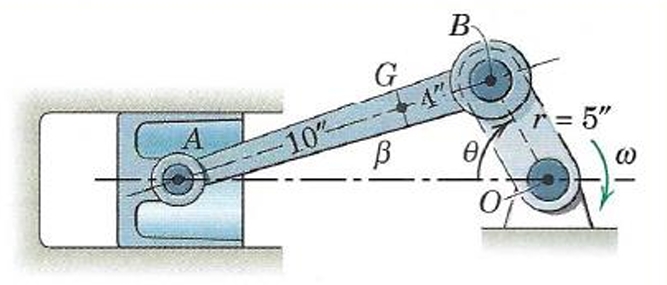

The common configuration of a reciprocating engine is that of a slider crank mechanism shown in the figure above. If crank OB has a clockwise rotational speed of 1500 rpm, sweep the angle theta from 0 degrees to 180 degrees. (WA=10 lb and WAB=5 lb) i) Find and graph the angular velocity and acceleration with respect to theta. ii) Plot the velocity and acceleration of point A with respect to theta. iii) Plot the reaction force, RAx, and RAy with respect to theta. iv) Plot the reaction force, RBx, and RBy with respect to theta. Assume that the center of gravity of the connecting rod is in the geometric center of the rod.
