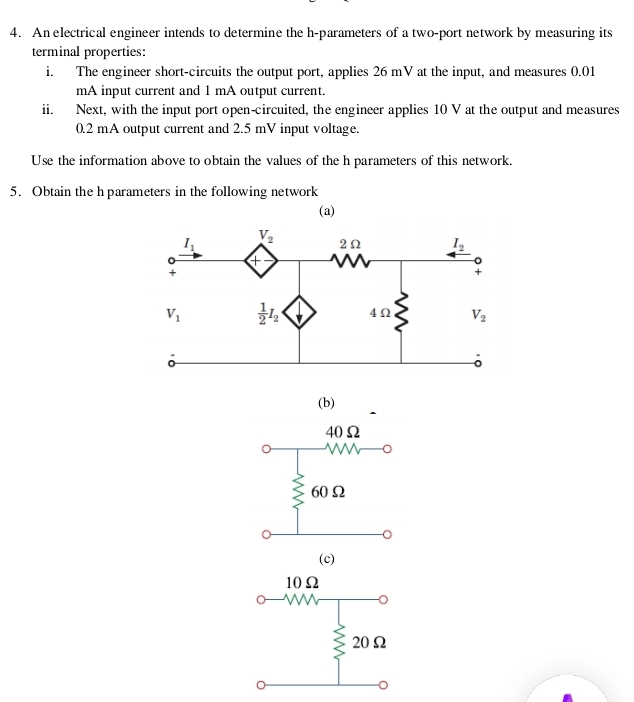

An electrical engineer intends to determine the h $-$parameters of a two$-$port network by measuring its terminal properties:

i$.$ The engineer short$-$circuits the output port, applies $26$ mV at the input, and measures $0\mathrm{.}01$ mA input current and $1$ mA output current.

ii$.$ Next, with the input port open$-$circuited, the engineer applies $10$ V at the output and measures $0\mathrm{.}2$ mA output current and $2\mathrm{.}5$ mV input voltage.

Use the information above to obtain the values of the h parameters of this network.

$5.$ Obtain the h parameters in the following network

$($a$)$

$($c$)$
