Question: Solve part A , B and C with details please. A spillway carries a discharge of 2 2 . 5 m 3 s e c

Solve part A, B and C with details please.

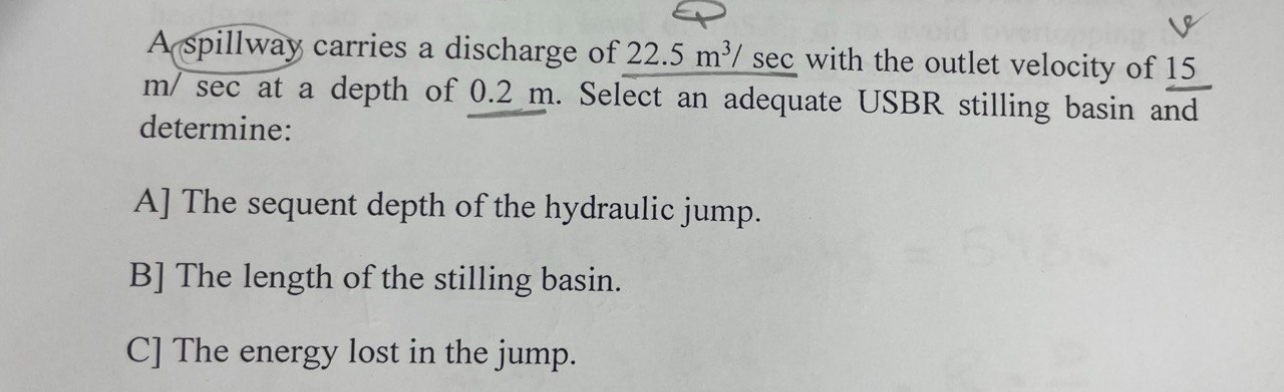

A spillway carries a discharge of 22.5m3sec with the outlet velocity of 15msec at a depth of 0.2 m . Select an adequate USBR stilling basin and determine:
A] The sequent depth of the hydraulic jump.
B] The length of the stilling basin.
C] The energy lost in the jump.
Solve part A , B and C with details please. A
