Question: Solve Problem 4 . 9 except change problem as noted below. ( 1 6 points ) Change all horizontal width values to 2 in (

Solve Problem 4.9 except change problem as noted below. (16 points)
Change all horizontal width values to 2 in (were 3 in), change thickness of bottom strip to 3 in (was 2 in), and change the distance between the each support and load to 50 in (e.g. distances AB, CD; was 40 in).
NOTE: The moment in region BC is equal to 750 in-kip [=(15 kips)(50 in)].

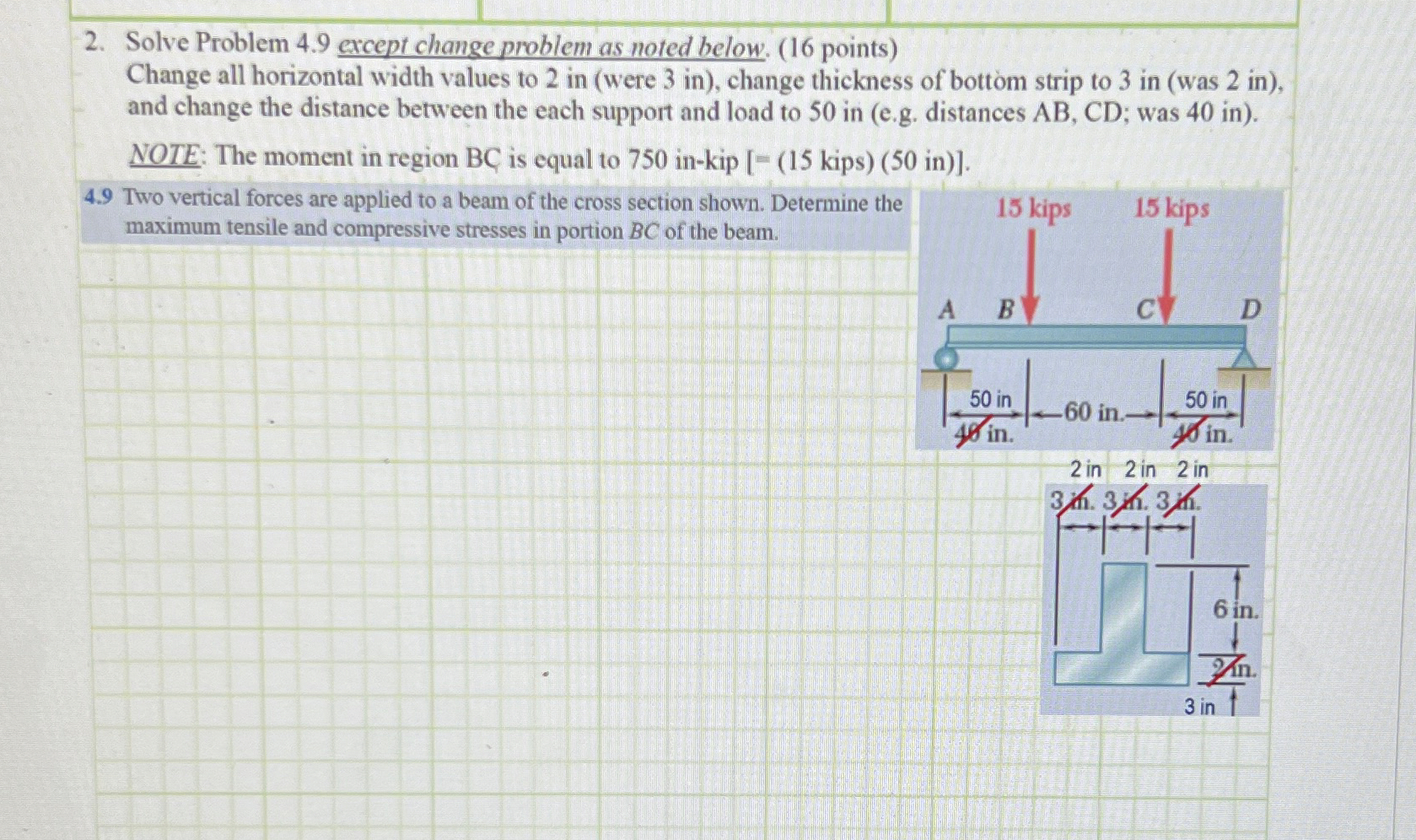

4.9 Two vertical forces are applied to a beam of the cross section shown. Determine the maximum tensile and compressive stresses in portion BC of the beam.
Solve Problem 4 . 9 except change problem as

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
