Question: Solve the flowing Problem using Relative Velocity Method; In a pin jointed four bar mechanism, as shown in Fig, AB = 300 mm, BC

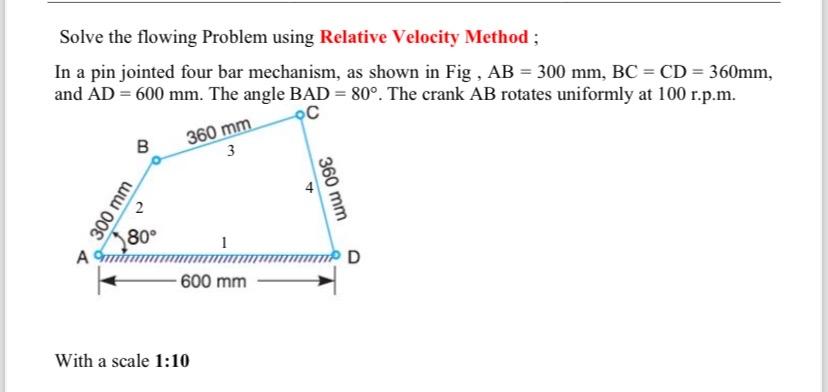

Solve the flowing Problem using Relative Velocity Method; In a pin jointed four bar mechanism, as shown in Fig, AB = 300 mm, BC = CD = 360mm, and AD = 600 mm. The angle BAD = 80. The crank AB rotates uniformly at 100 r.p.m. B 360 mm 3 C A 300 mm 2 80 1 600 mm With a scale 1:10 360 mm D
