Question: Solve the following. Show your complete solution. A circuit with two resistors as shown in the figure, carries a 15 A total current. What is

Solve the following. Show your complete solution.

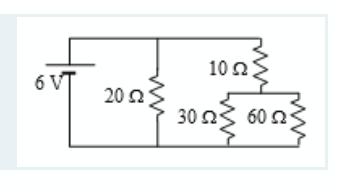

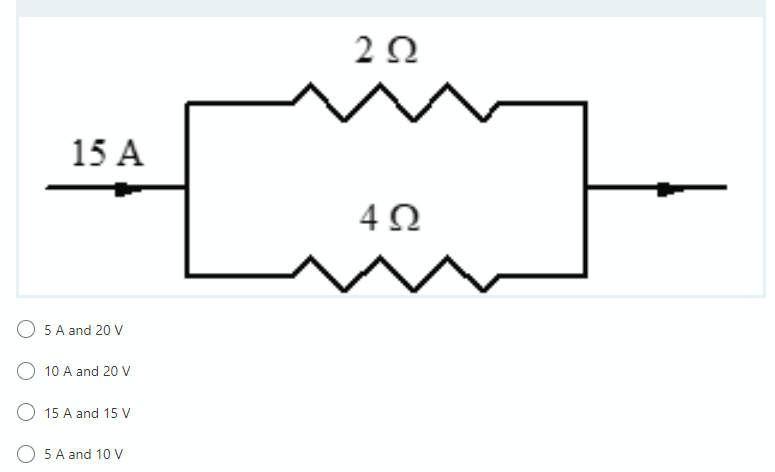

A circuit with two resistors as shown in the figure, carries a 15 A total current. What is the current through the 2 ohm resistor and the voltage across the 4 ohm resistor?

20 15 A 40 5 A and 20 V 10 A and 20 V 15 A and 15 V 5 A and 10 V\f\f

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
