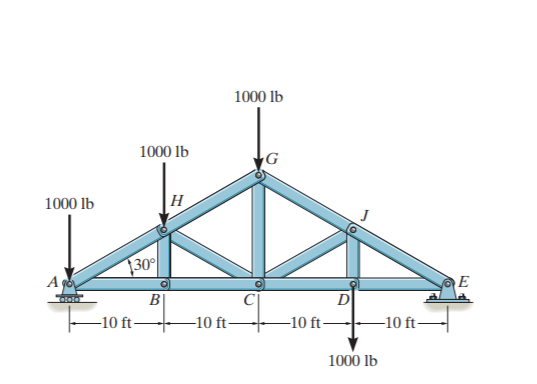

Solve the planar statics problem using MATLAB. On paper or using the Live Script text equation editor (not code), write out the equations & Fx = 0 and Fy = 0 for each joint. Enter the equations as MATLAB code in the form Ax = B, where x is a column vector containing the unknown reaction forces and member axial forces. Use comments to document which value each element of x represents. Solve for the unknowns using x = A B. Compute the rank of the matrix A. Check your answer for x for a couple of values that are easy to calculate by hand (at least one reaction force and one internal force). 1000 lb 1000 lb G 1000 lb . 30 Ayo E BI D -10 ft -10 ft -10 ft -10 ft 1000 lb Solve the planar statics problem using MATLAB. On paper or using the Live Script text equation editor (not code), write out the equations & Fx = 0 and Fy = 0 for each joint. Enter the equations as MATLAB code in the form Ax = B, where x is a column vector containing the unknown reaction forces and member axial forces. Use comments to document which value each element of x represents. Solve for the unknowns using x = A B. Compute the rank of the matrix A. Check your answer for x for a couple of values that are easy to calculate by hand (at least one reaction force and one internal force). 1000 lb 1000 lb G 1000 lb . 30 Ayo E BI D -10 ft -10 ft -10 ft -10 ft 1000 lb
