Question: Solve the problem using the method of equilibrium. Suppose that x = 1 4 ksi, x y = 8 ksi Part A Determine the normal

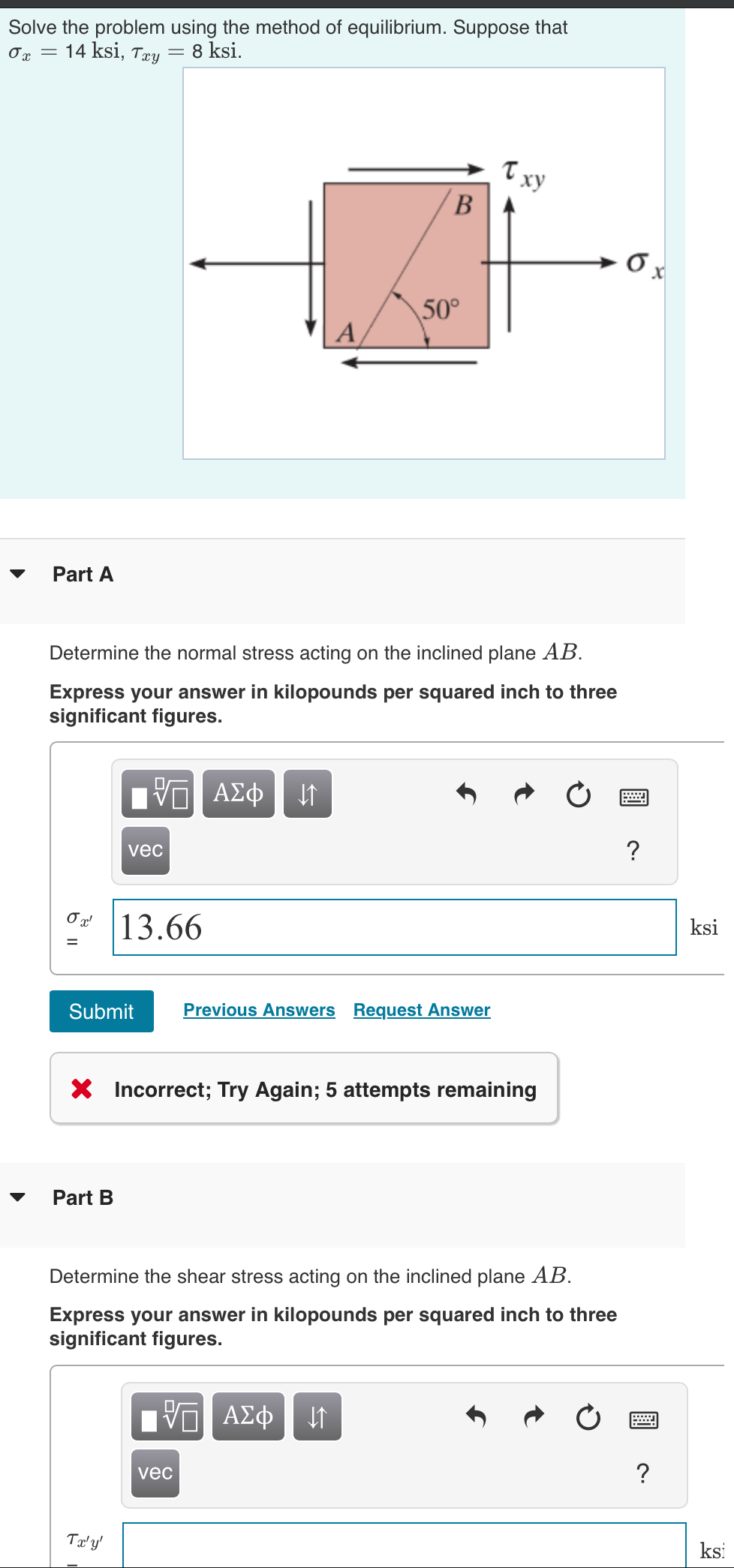

Solve the problem using the method of equilibrium. Suppose that x=14ksi,xy=8ksi
Part A
Determine the normal stress acting on the inclined plane AB.
Express your answer in kilopounds per squared inch to three significant figures.
Incorrect; Try Again; 5 attempts remaining
Part B
Determine the shear stress acting on the inclined plane AB.
Express your answer in kilopounds per squared inch to three significant figures.
Solve the problem using the method of

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
