Question: Solve this equilibrium problem for the vertical, horizontal, forces and tensions. (V,H,T) Length of board is 8.00m Distance to the 2000 N force is 4.00

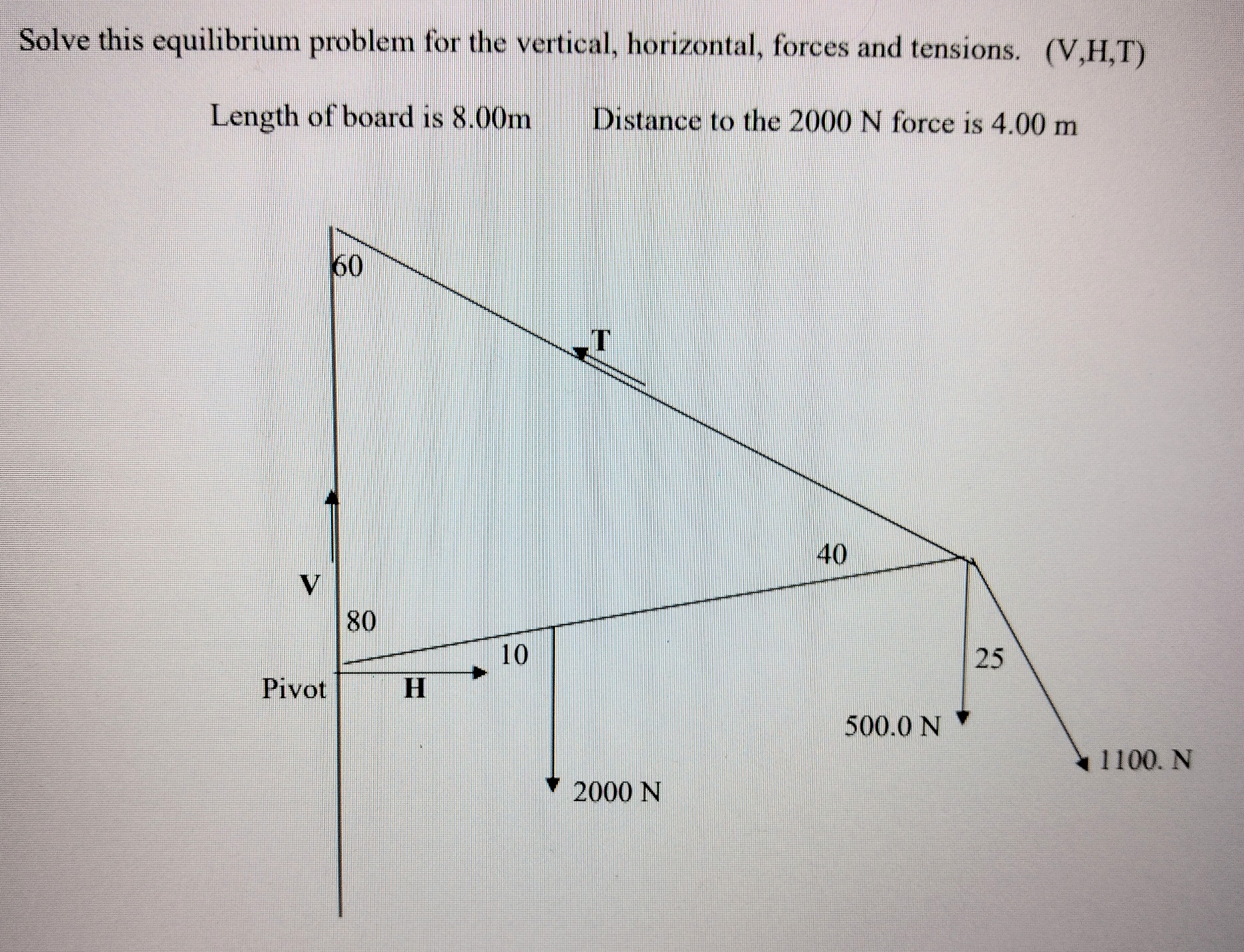

Solve this equilibrium problem for the vertical, horizontal, forces and tensions. (V,H,T) Length of board is 8.00m Distance to the 2000 N force is 4.00 m 60 40 V 80 10 25 Pivot H 500.0 N 1 100. N 2000 N

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
