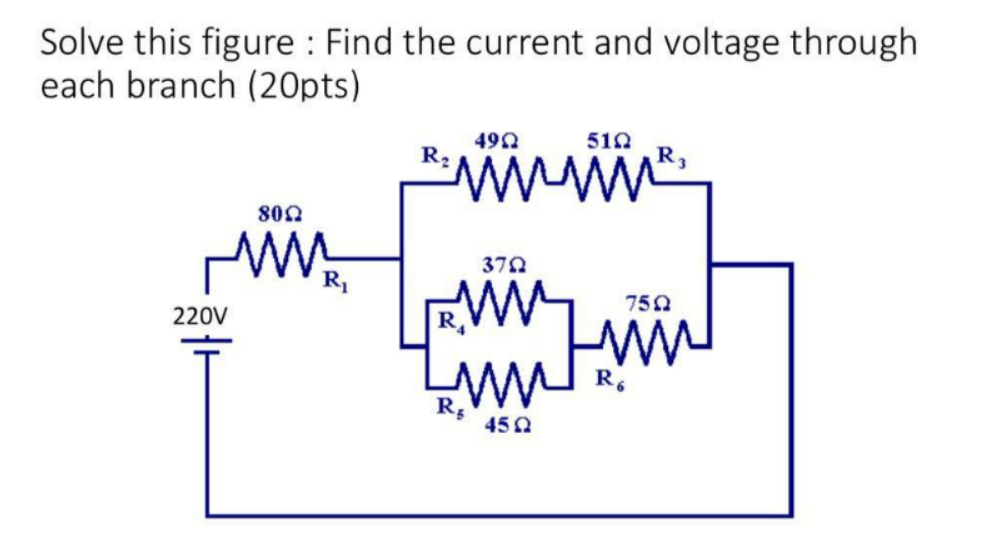

Question: Solve this figure : Find the current and voltage through each branch (20pts) Solve this figure : Find the current and voltage through each branch

Solve this figure : Find the current and voltage through each branch

(20pts) 490 SOQ 370 220V 45 Q SIQ

Solve this figure : Find the current and voltage through each branch (20pts)

Solve this figure : Find the current and voltage through each branch (20pts) 490 SOQ 370 220V 45 Q SIQ

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
