Question: Solve this problem ( stress analysis ) The curved beam is subjected to a bending moment of as shown. Determine the maximum compressive and tensile

Solve this problem (stress analysis)

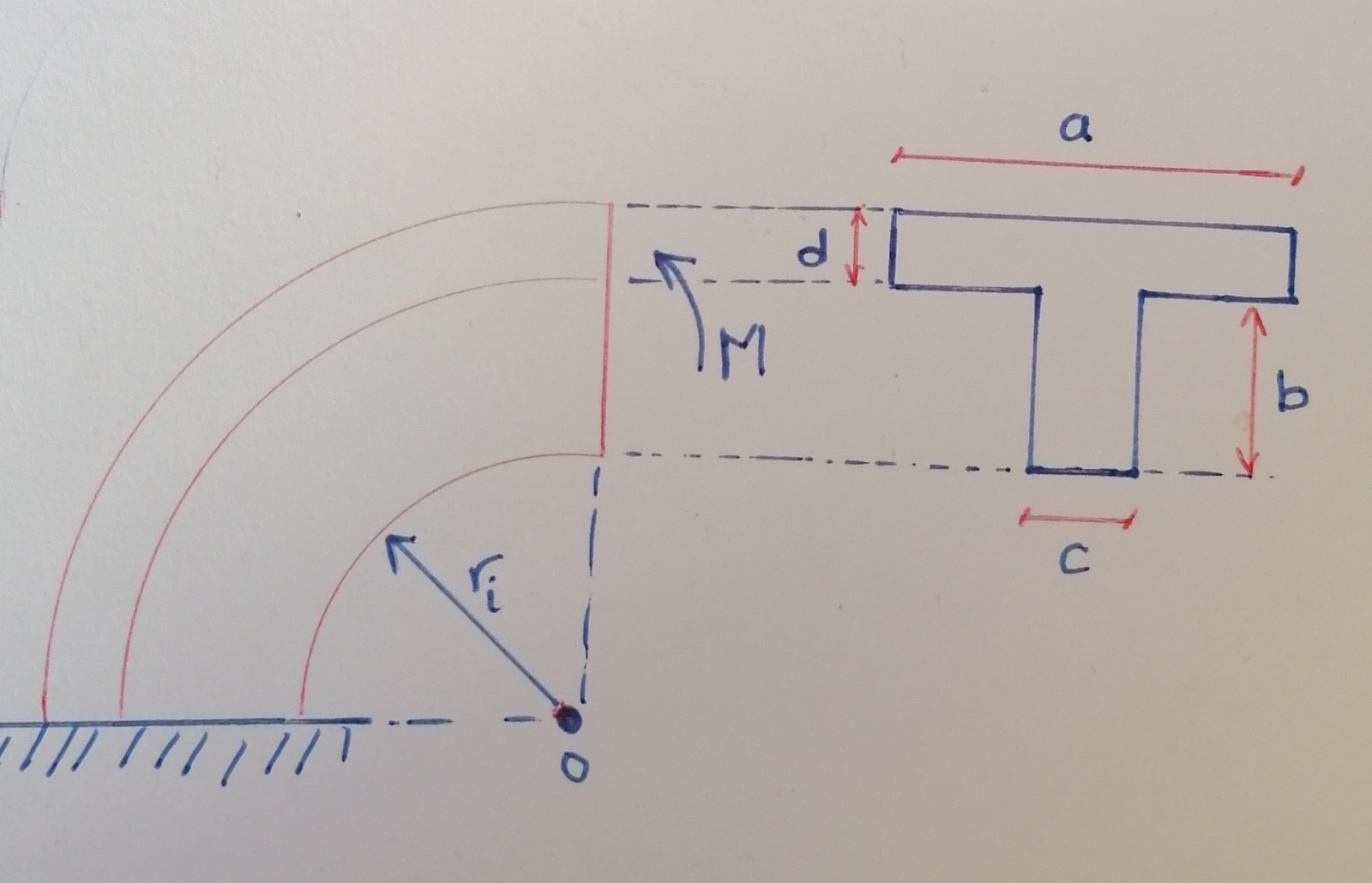

The curved beam is subjected to a bending moment of as shown. Determine the maximum compressive and tensile stresses in the section. Take M =900 N.m, ri =400 mm, a =100 mm, b =100 mm, c =15 mm, and d =20 mm.
