Question: Solve this using excel ( matrix structural analysis ) and show the steps Determine the vertical deflections at joint 2 and 4 , the internal

Solve this using excel (matrix structural analysis) and show the steps

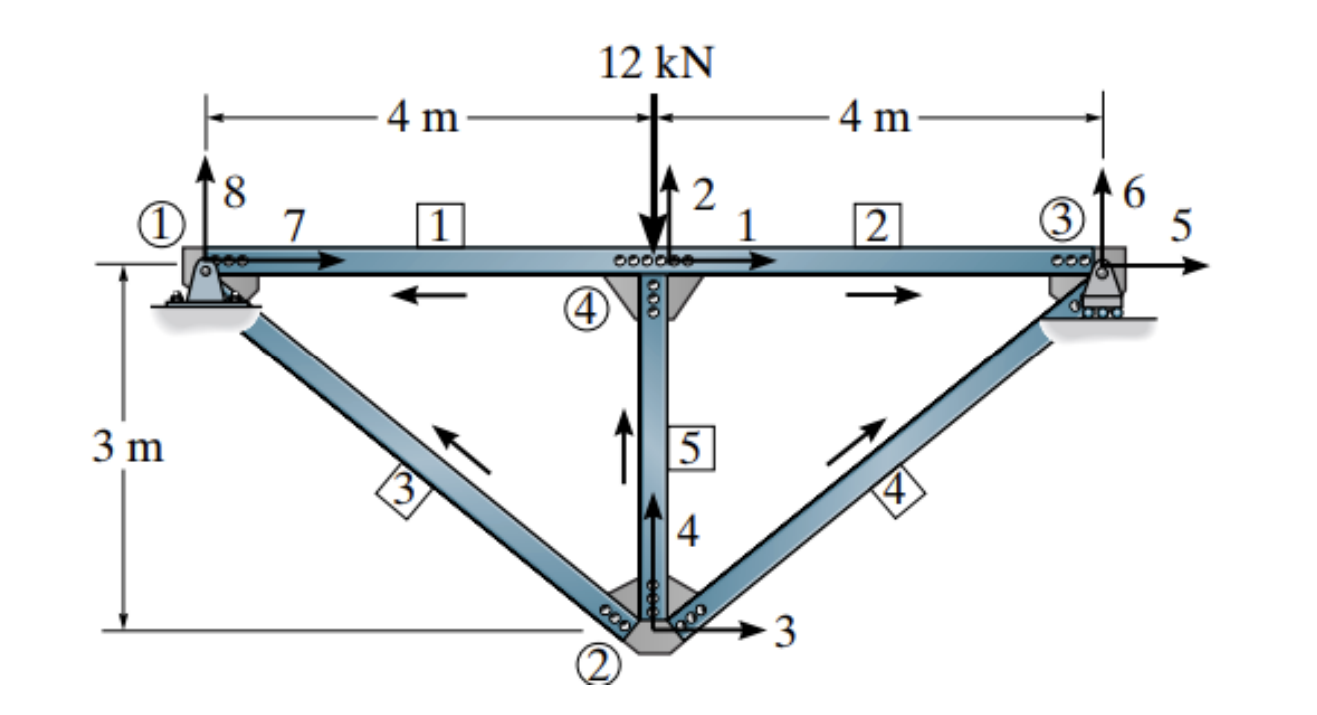

Determine the vertical deflections at joint 2 and 4, the internal forces in all members, and the reaction forces at supports of the truss in the figure below. Take A =0.0015 m2 and E =200 GPa for each member. f
Solve this using excel ( matrix structural

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
