Question: SOLVE USING MOHRS CIRCLE 9 - 7 . Determine the stress components acting on the inclined plane A B . Solve the problem using the

SOLVE USING MOHRS CIRCLE

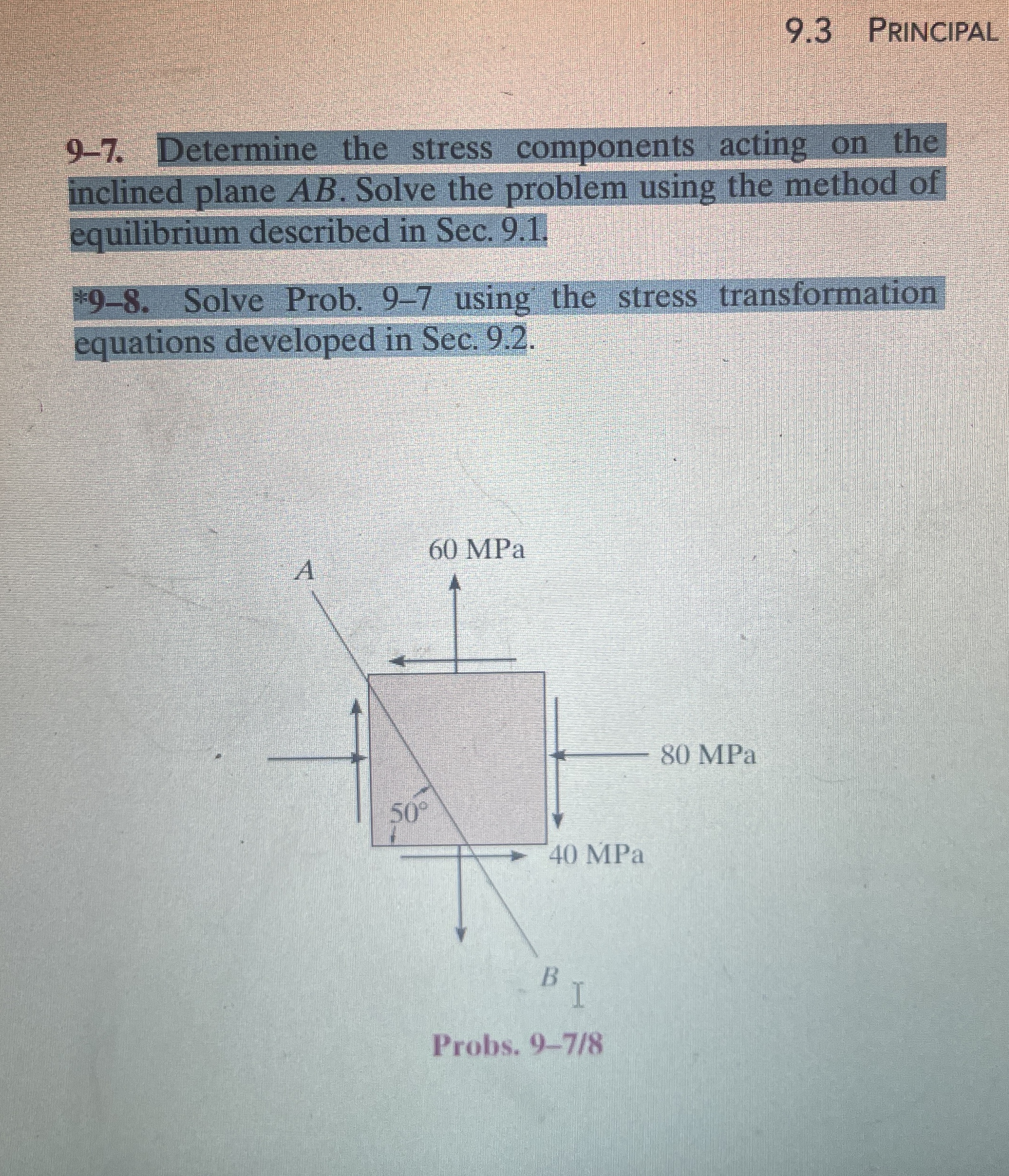

9-7. Determine the stress components acting on the inclined plane AB. Solve the problem using the method of equilibrium described in Sec. 9.1.
*9-8. Solve Prob. 9-7 using the stress transformation equations developed in Sec. 9.2.
Probs. 9-7/8
SOLVE USING MOHRS CIRCLE 9 - 7 . Determine the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
