Question: SPECIAL ASSIGNMENT III Solve the relay voltage connection problem to bias the directional unit. Connect the AC circuits illustrated below so that the CR relay

the directional unit. Connect the AC circuits illustrated below so that the

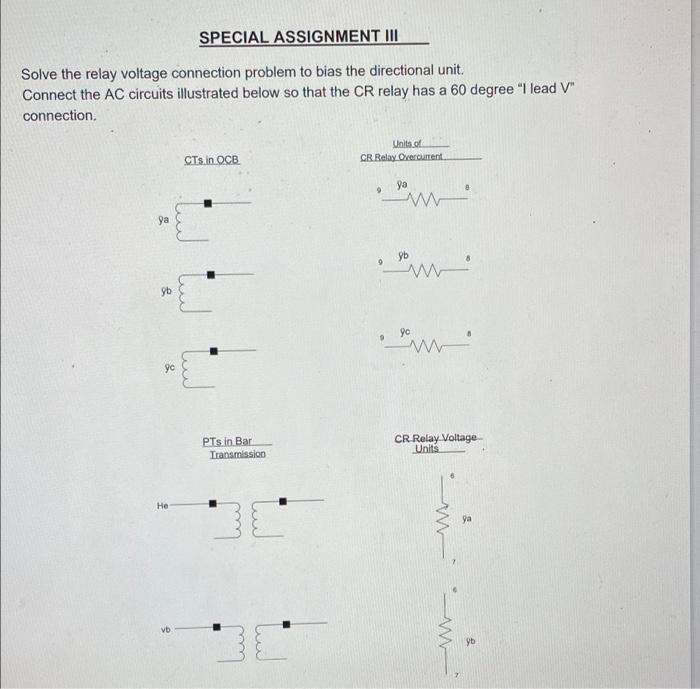

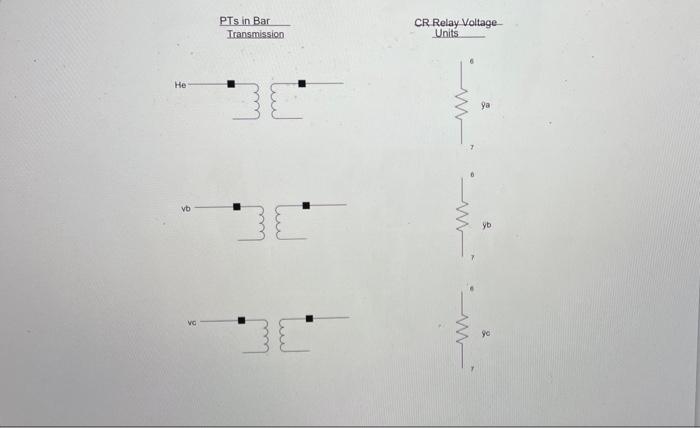

SPECIAL ASSIGNMENT III Solve the relay voltage connection problem to bias the directional unit. Connect the AC circuits illustrated below so that the CR relay has a 60 degree "I lead V" connection, CTS in OCB CR Relay Overcurrent ya 9 ya E 9 yb Wc ye PTs in Bar Transmission CR Relay Voltage Units 1 vb M yt PTs in Bar Transmission CR Relay Voltage Units He ya vb yb VO

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
