Question: SS . 4 . 6 Eigure P 4 . 6 shows a portion of a C - clamp. What force F can be exerted by

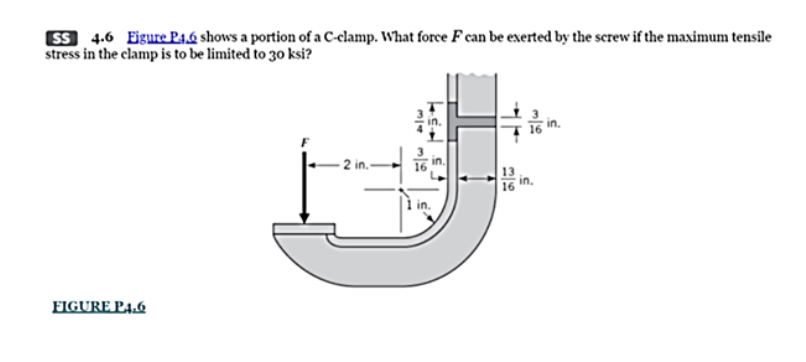

SS.4.6 Eigure P4.6 shows a portion of a C-clamp. What force F can be exerted by the screw if the maximum tensile
stress in the clamp is to be limited to 30 ksi ?
EIGUREP4.6
SS . 4 . 6 Eigure P 4 . 6 shows a portion of a C

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
