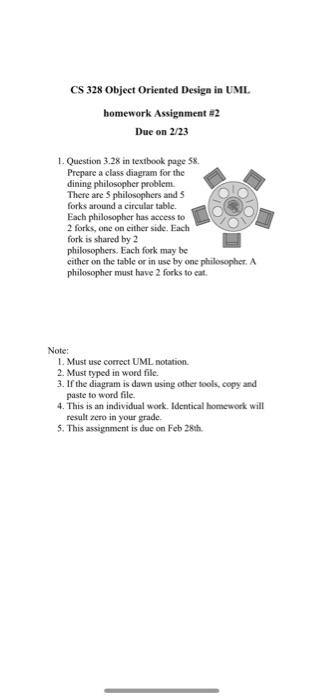

CS 328 Object Oriented Design in UML homework Assignment #2 Due on 2/23 1. Question 3.28 in textbook page 58 Prepare a class diagram for the dining philosopher problem There are 5 philosophers and S forks around a circular table. Each philosopher has access to 2 forks, one on either side. Each fork is shared by 2 philosophers. Each fork may be cither on the table or in use by one philosopher. A philosopher must have 2 forks to cat Note: 1. Must use correct UML notation 2. Must typed in word file. 3. If the diagram is dawn using other tools, copy and paste to word file. 4. This is an individual work. Identical homework will result zero in your grade 5. This assignment is due on Feb 28th
