State Table, Transition Table, Logic Circuit, etc.

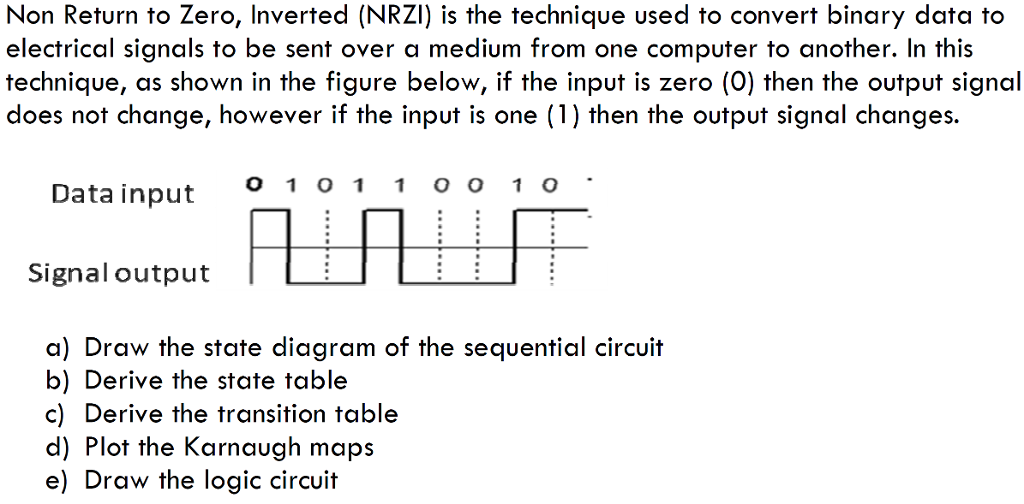

Non Return to Zero, Inverted (NRZI) is the technique used to convert binary data to electrical signals to be sent over a medium from one computer to another. In this technique, as shown in the figure below, if the input is zero (0) then the output signal does not change, however if the input is one (1) then the output signal changes. Data input 101 1 0 0 1 o Signal output a) Draw the state diagram of the sequential circuit b) Derive the state table c) Derive the transition table d) Plot the Karnaugh maps e) Draw the logic circuit
