Question: State whether the truss shown is externally and internally statically determinate and justify your answer. Determine the force in member FH , which has a

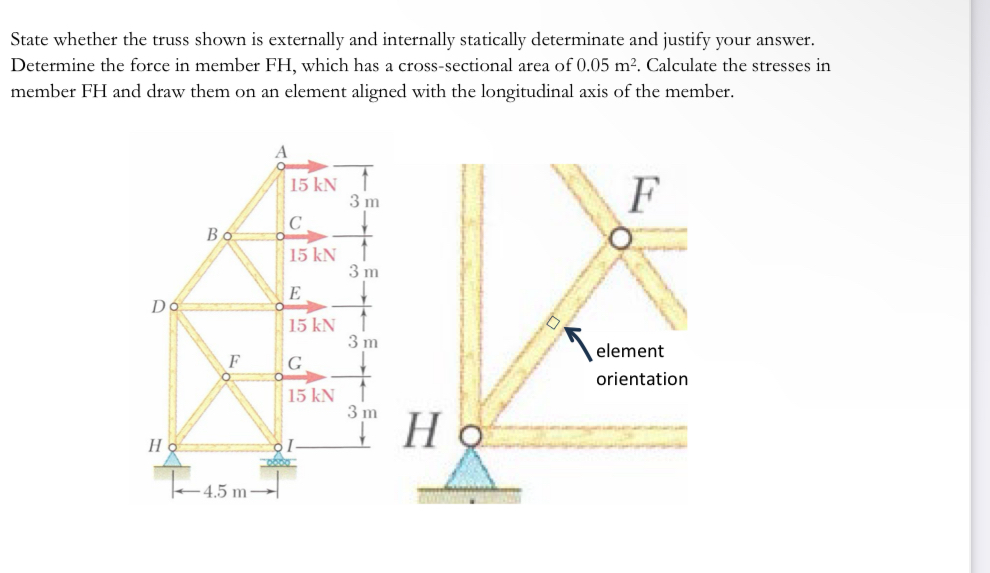

State whether the truss shown is externally and internally statically determinate and justify your answer. Determine the force in member FH, which has a cross-sectional area of 0.05m2. Calculate the stresses in member FH and draw them on an element aligned with the longitudinal axis of the member.
State whether the truss shown is externally and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
