Static and Routing Protocol Entries

Routes, so packets can be sent out beyond directly attached subnets

Explicit subnets

RTR$2$

$201\mathrm{.}10\mathrm{.}6\mathrm{.}0,23,$ via $126\mathrm{.}255\mathrm{.}103\mathrm{.}42$

Default routes

$PCl$

$*0\mathrm{.}0\mathrm{.}00,10,$ va $201\mathrm{.}10\mathrm{.}6\mathrm{.}1$

RTRI

$*0\mathrm{.}0\mathrm{.}0\mathrm{.}0,10,$ via $126\mathrm{.}255\mathrm{.}103\mathrm{.}15$

Select all that correct, considering the specified routing table entries on this and previous slide $($check all that apply$)$

If RTRI sends packet to $126\mathrm{.}255\mathrm{.}103\mathrm{.}16,$ it will apply actions defined the default route

$PCl$ is able to send packets to all IP addresses in the world

If $PC1$ sends packet to $126\mathrm{.}255\mathrm{.}103\mathrm{.}15,$ it will successfully reach RTR$2$

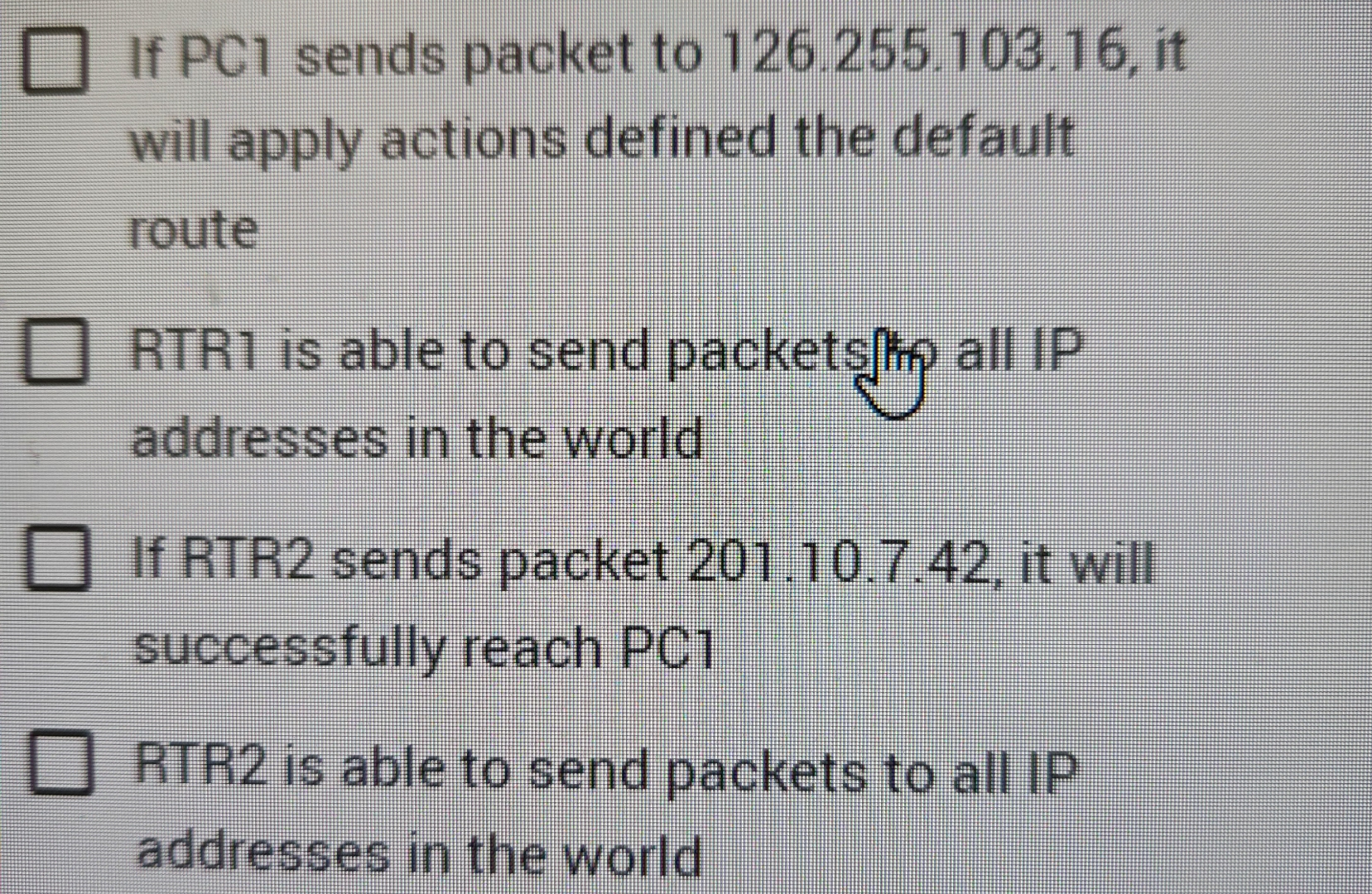

If $PC1$ sends packet to $126\mathrm{.}255\mathrm{.}103\mathrm{.}16,$ it will apply actions defined the default route

If $PC1$ sends packet to $126\mathrm{.}255\mathrm{.}103\mathrm{.}16,$ it will apply actions defined the default route

RTR$1$ is able to send packetsfitip all IP addresses in the world

If RTR$2$ sends packet $201\mathrm{.}10\mathrm{.}7\mathrm{.}42,$ it will successfully reach $PC1$

RTR$2$ is able to send packets to all IP addresses in the world
