Question: Statically Indeterminant Deflection in Beams Problem 1 : Setup: The beam is used to support the 2 0 - kip load. Assume A is fixed

Statically Indeterminant Deflection in Beams
Problem 1:

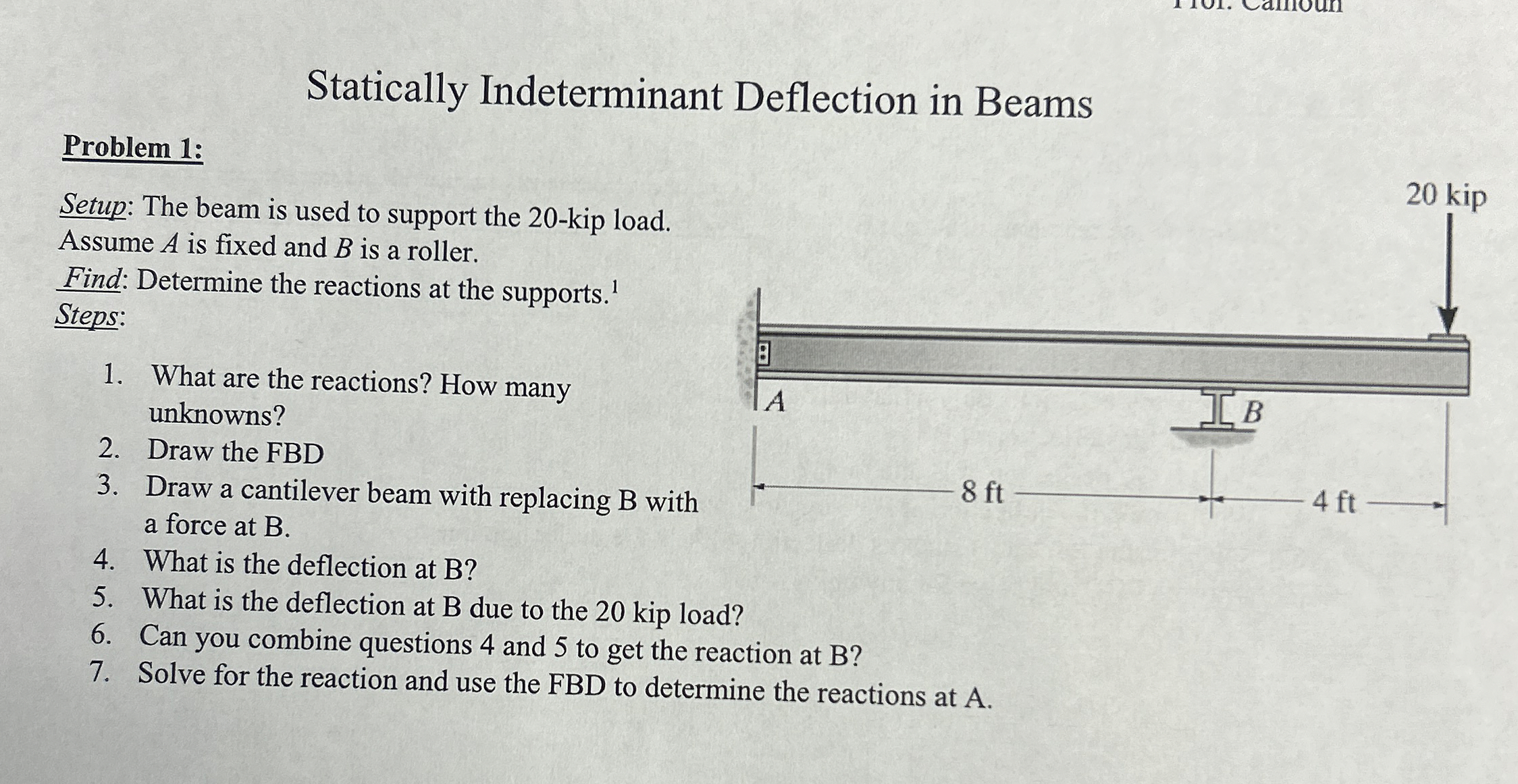

Setup: The beam is used to support the 20-kip load. Assume A is fixed and B is a roller.
Find: Determine the reactions at the supports. ?1
Steps:
What are the reactions? How many unknowns?
Draw the FBD
Draw a cantilever beam with replacing B with a force at B.
What is the deflection at B ?
What is the deflection at B due to the 20 kip load?
Can you combine questions 4 and 5 to get the reaction at B ?
Solve for the reaction and use the FBD to determine the reactions at A.
Statically Indeterminant Deflection in Beams

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
