Question: Statically Indeterminate Structures - Superposition This statically indeterminate, simply supported beam has the loading shown. El is constant. ( 3 pts each ) What is

Statically Indeterminate Structures - Superposition

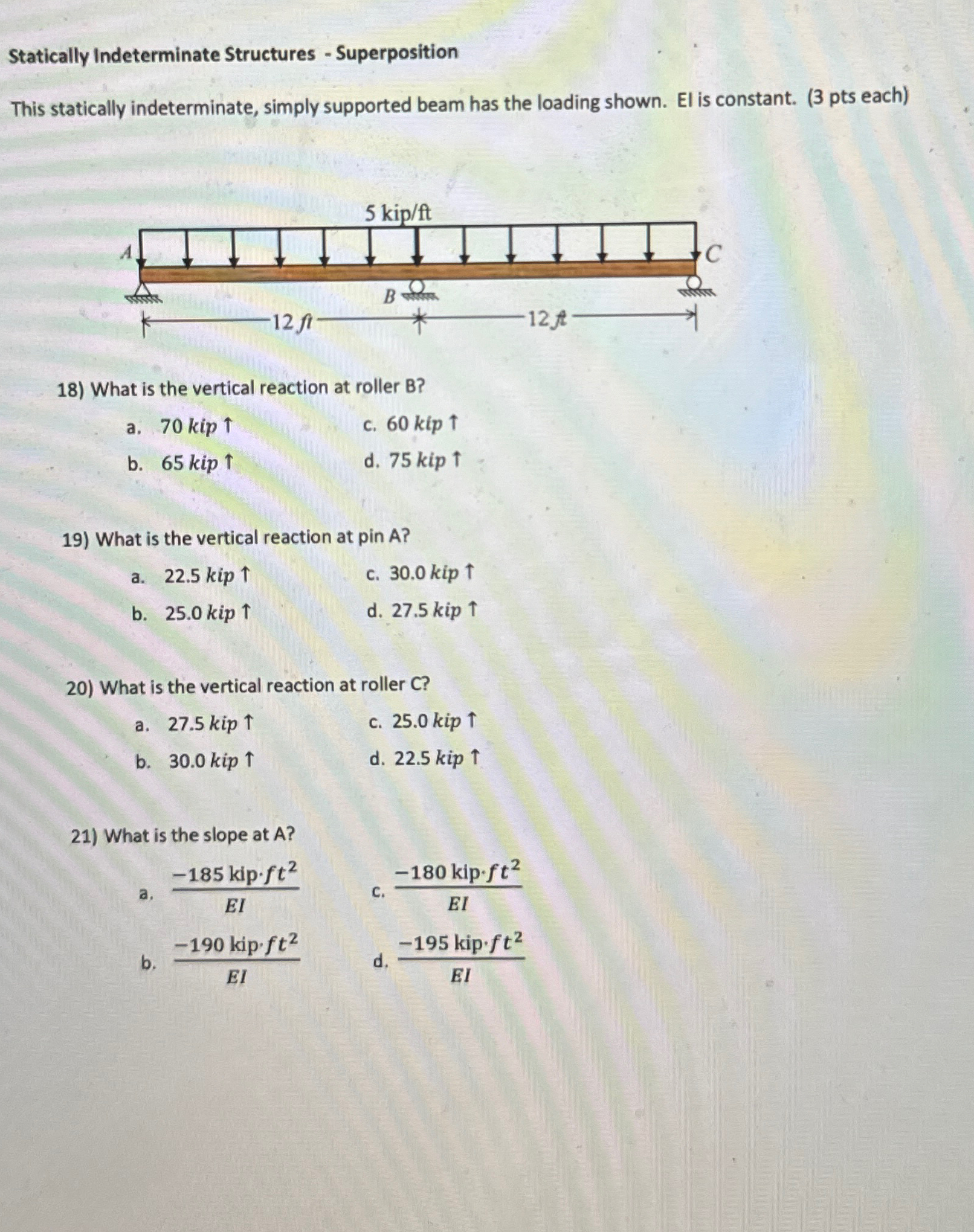

This statically indeterminate, simply supported beam has the loading shown. El is constant. (3 pts each)
What is the vertical reaction at roller B?
a.70 kip uarr
c.60 kip uarr
b.65 kip uarr
d.75 kip uarr
What is the vertical reaction at pin A?
a.22.5kipuarr
c.30.0 kip uarr
b.25.0kipuarr
d.27.5kipuarr
What is the vertical reaction at roller C?
a.27.5 kip uarr
c.25.0 kip uarr
b.30.0 kip uarr
d.22.5 kip uarr
What is the slope at A?
a.-185kjp*ft2EI
c.-180kip*ft2EI
b.-190kip*ft2EI
d.-195kip*ft2EI
Statically Indeterminate Structures -

Step by Step Solution

There are 3 Steps involved in it
