Question: step by step Problem#4: A brine with flow rate B, is heated from T1 to T2 by condensing steam in a shell and tube heat

step by step Problem#4: A brine with flow rate B, is

step by step

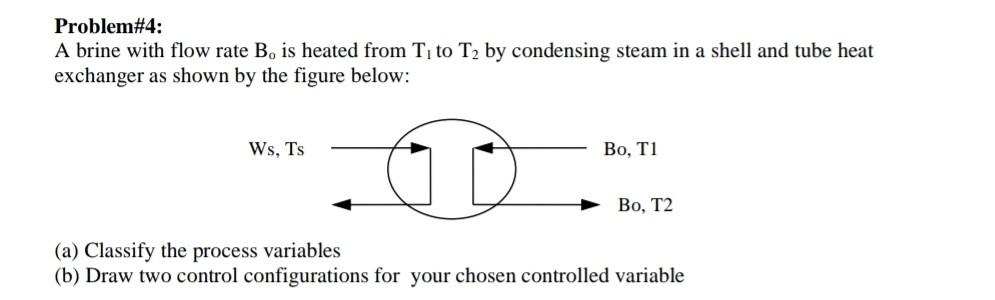

Problem#4: A brine with flow rate B, is heated from T1 to T2 by condensing steam in a shell and tube heat exchanger as shown by the figure below: Ws, Ts Bo, T1 a Bo, T2 (a) Classify the process variables (b) Draw two control configurations for your chosen controlled variable
