Question: Steps for 1 2 . 5 1 and 1 2 . 5 2 Draw the shear and bending - moment diagrams for the beam and

Steps for

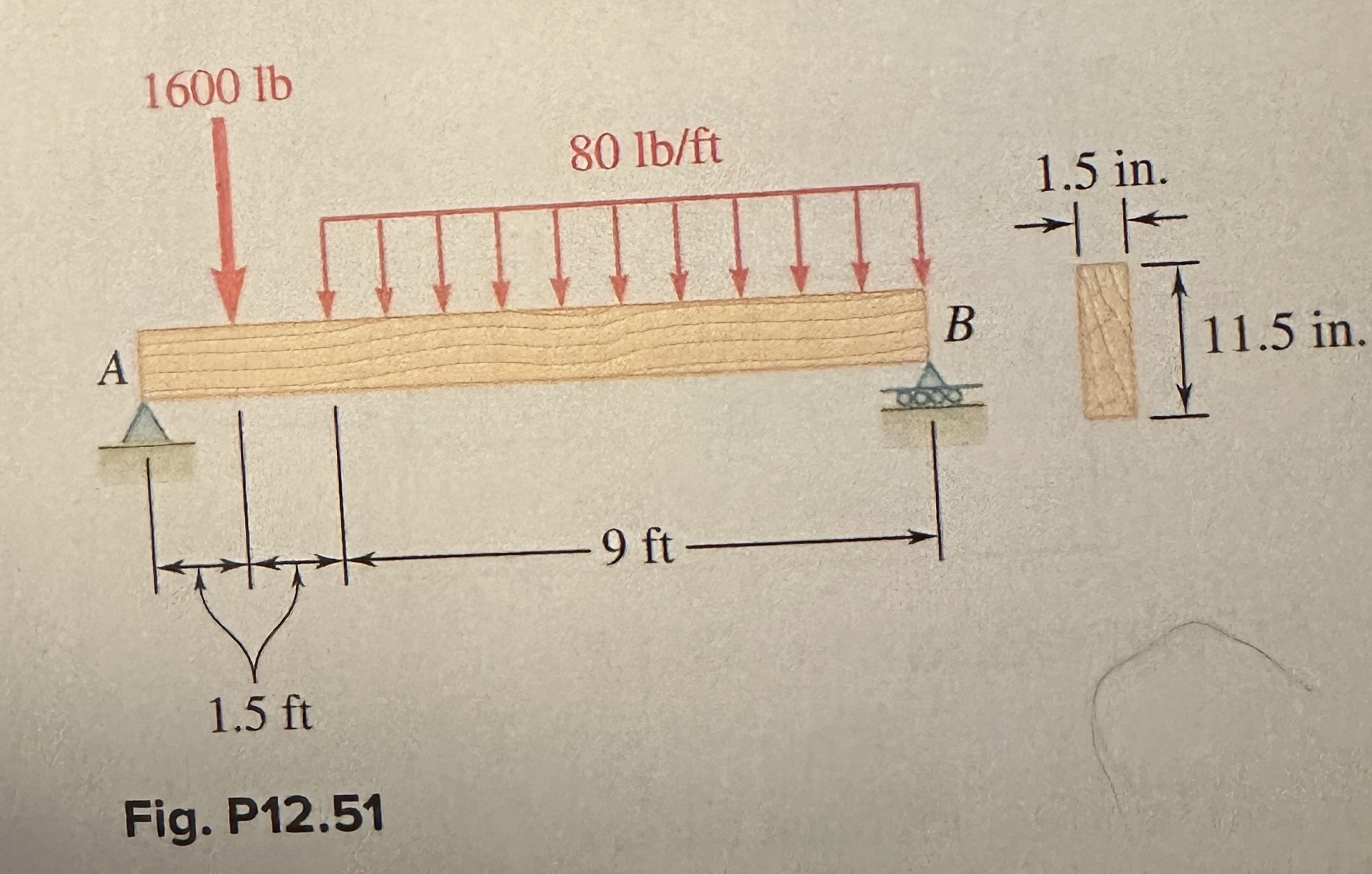

12.51 and 12.52 Draw the shear and bending-moment diagrams for the beam and loading shown, and determine the maximum normal stress due to bending.
Fig. P12.51
Steps for 1 2 . 5 1 and 1 2 . 5 2 Draw the shear

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
