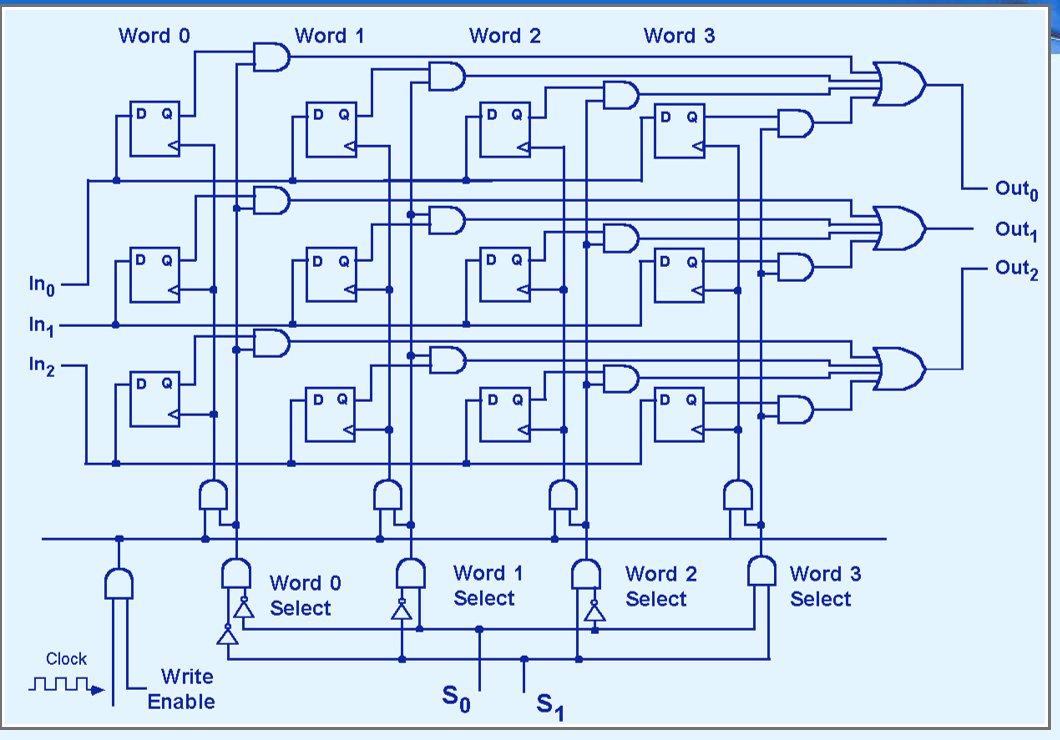

Study the memory cells above 8. Suppose write enable = 1, S0 = 0, S1 = 1, In0 = 1, In1 = 0, In2 = 0. a) When the clock ticks, which word of memory (if any) will be updated? b) From top to bottom, what will the values in the bits of that word become? c) What will the values of Out0, Out1, Out2 be?

Note: Here are the possible answers to question a): name of a word (word 0, word 1, word 2 or word 3), or none.

Here are the possible answers to question b): any bit combination, or no change.

Here are the possible answers to question c): any bit combination, or bits currently in word n, where n = 0, 1, 2 or 3.
