Question: STY 2 6 0 INDIVIDUAL ASSIGNMENT - NON - SWAY FRAME Use Moment Distribution Method to analysie the non - sway frame shown below. Mark

STY260 INDIVIDUAL ASSIGNMENT - NON - SWAY FRAME
Use Moment Distribution Method to analysie the non-sway frame shown below.
Mark Allocation [40 marks]

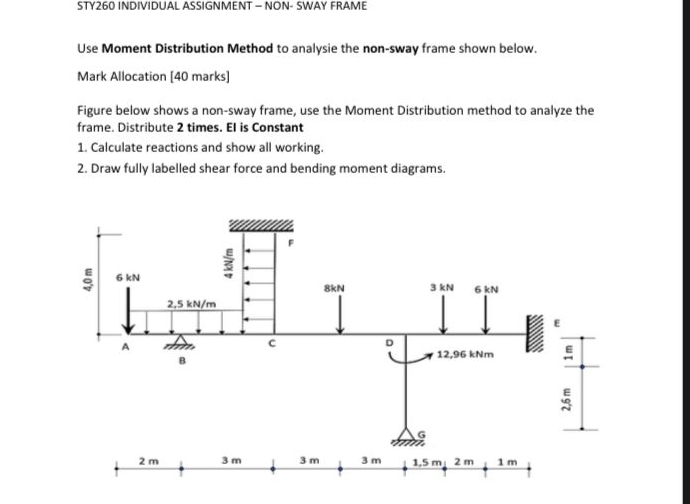

Figure below shows a non-sway frame, use the Moment Distribution method to analyze the frame. Distribute 2 times. El is Constant
Calculate reactions and show all working.
Draw fully labelled shear force and bending moment diagrams.
STY 2 6 0 INDIVIDUAL ASSIGNMENT - NON - SWAY

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
