subject: data communication and network

Question 2

Network cable management is one of the fundamental parts of any computer network. Network engineers and admins make their way through cables for identification and troubleshooting and to help them facilitate upgrades in the future. Answer the following question.

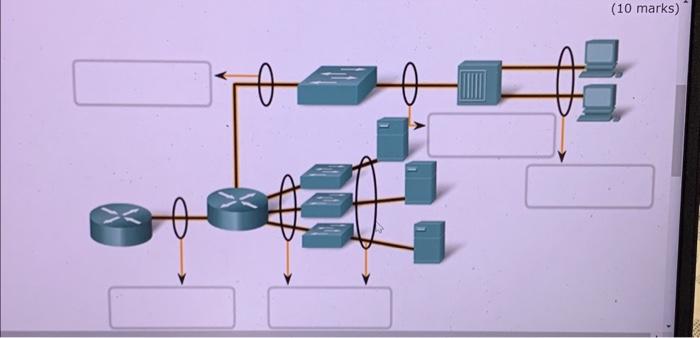

(a) Identify the correct unshielded twisted pair (UTP) cable to connect intermediate and end devices in Figure 1. Draw this diagram in your answer booklet and label it with the correct answer.

subject: data communication and network Question 2 Network cable management is one

of the fundamental parts of any computer network. Network engineers and admins

(10 marks) (b) Define a crossover cable and discuss situations where it might be used. (5 marks) (c) Discuss FIVE (5) the similarities and differences shared by shielded twisted pair (STP) and unshielded twisted pair (UTP). (10 marks)
