Question: Supplemental Problem 3: Fill in the given table for the following shaft and hole limits. Click the Submit Answers button to check your answers.

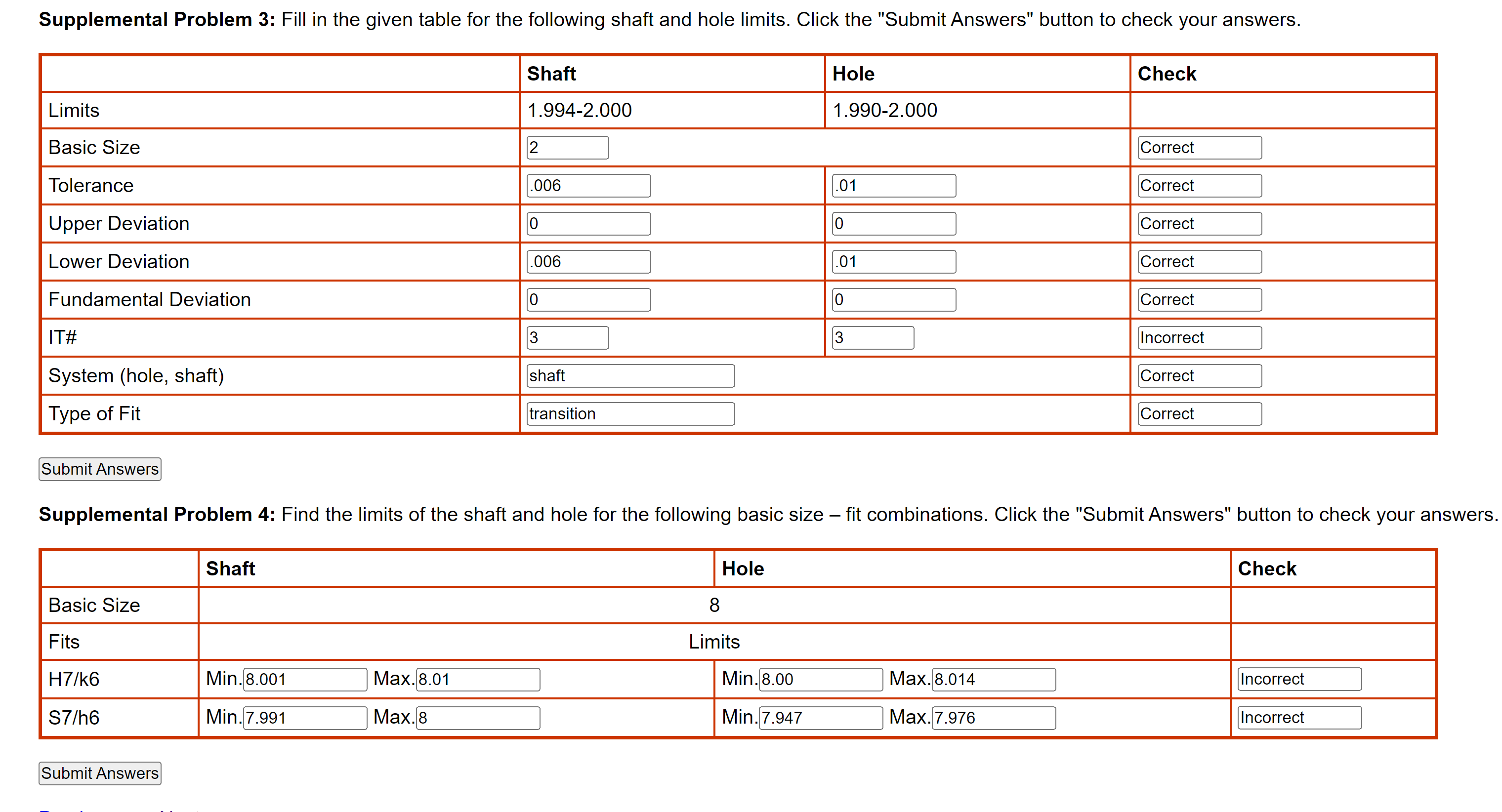

Supplemental Problem 3: Fill in the given table for the following shaft and hole limits. Click the "Submit Answers" button to check your answers. Shaft Limits 1.994-2.000 Hole 1.990-2.000 Check Basic Size 2 Correct Tolerance .006 .01 Correct Upper Deviation 0 0 Correct Lower Deviation .006 .01 Correct Fundamental Deviation 0 0 Correct IT# 3 3 Incorrect System (hole, shaft) shaft Correct Type of Fit transition Correct Submit Answers Supplemental Problem 4: Find the limits of the shaft and hole for the following basic size - fit combinations. Click the "Submit Answers" button to check your answers. Shaft Hole Check Basic Size 8 Limits Fits H7/k6 Min. 8.001 Max. 8.01 Min. 8.00 Max. 8.014 Incorrect S7/h6 Min. 7.991 Max. 8 Min. 7.947 Max. 7.976 Incorrect Submit Answers
