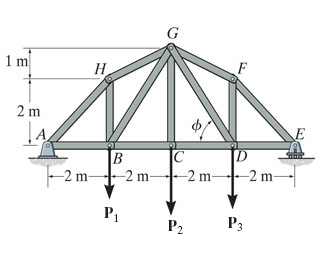

Question: Suppose that P1 = 14 kN, P2 = 35 kN, and P3 = 21 kN. Determine the force in member GF of the truss. Determine

Suppose that P1 = 14 kN, P2 = 35 kN, and P3 = 21 kN.

Determine the force in member GF of the truss.

Determine the force in member GD of the truss

Determine the force in member CD of the truss.

Suppose that P1 = 14 kN, P2 = 35 kN, and P3

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
