Suppose the path from A to B has a single switch S in between ASB The propagation delays on the AS and SB are 24 sec and 35 sec respectively The per packet bandwidth delays on the AS and SB links are 103 sec and 157 sec respectively The ladder diagram below describes the sending of two consecutive packets from A to B Label the time intervals (a) through (e) at the right edge, and give the total time for the packets to be sent 3 5 Suppose the path from A to B has a single switch S in between A 5 B The propagation delays on the A S and S B are 24 usec and 35 usec respectively The per packet bandwidth delays on the A S and S B links are 103 usec and 157 usec respectively The ladder diagram below describes the sending of two consecutive packets from A to B Label the time intervals (a) through (e) at the right edge, and give the total time for the packets to be sent packet 1 packet 2 packet 1 packet 2

The Answer is in the image, click to view ...

Question: Suppose the path from A to B has a single switch S in between: ASB. The propagation delays on the AS and SB are 24

Suppose the path from A to B has a single switch S in between: ASB. The propagation delays on the AS and SB are 24 sec and 35 sec respectively. The per-packet bandwidth delays on the AS and SB links are 103 sec and 157 sec respectively. The ladder diagram below describes the sending of two consecutive packets from A to B. Label the time intervals (a) through (e) at the right edge, and give the total time for the packets to be sent. Suppose the path from A to B has a single switch S

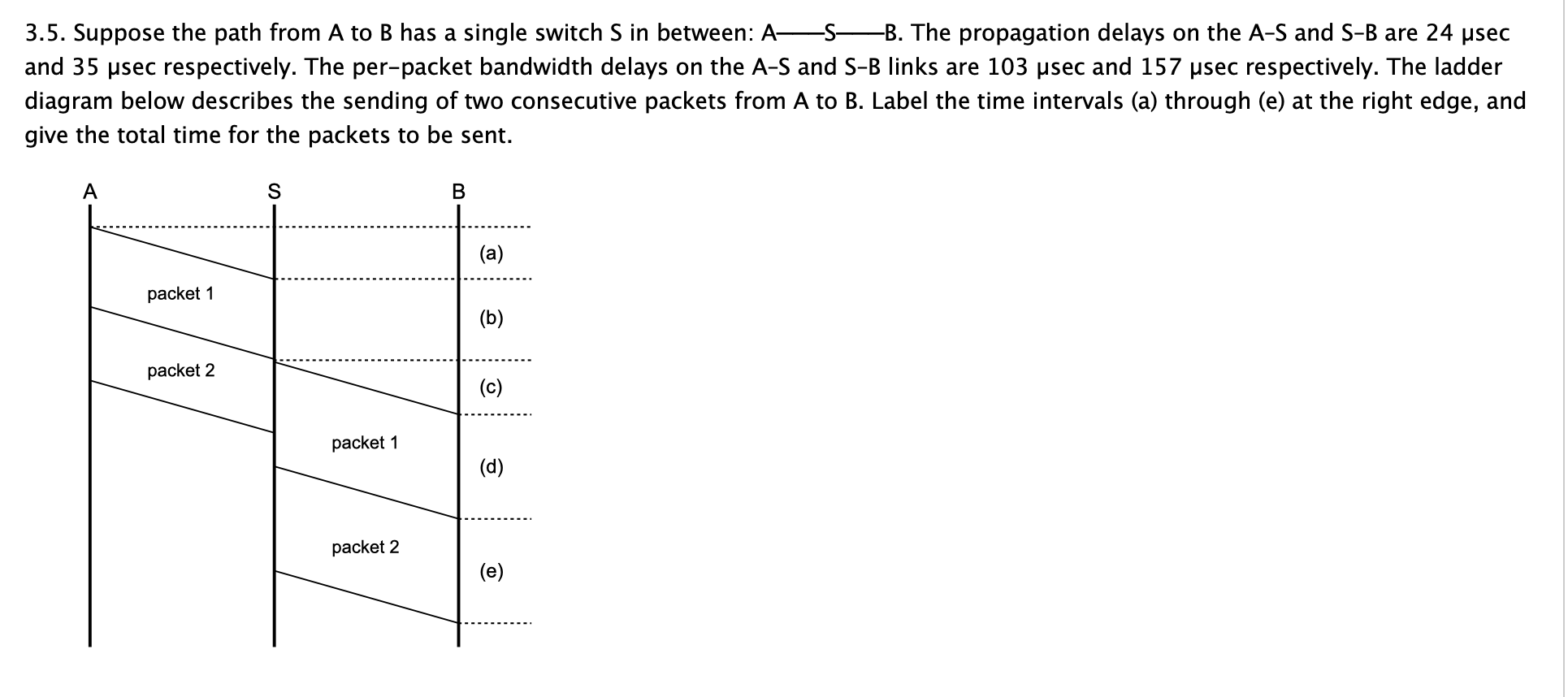

3.5. Suppose the path from A to B has a single switch S in between: A 5 B. The propagation delays on the A-S and S-B are 24 usec and 35 usec respectively. The per-packet bandwidth delays on the A-S and S-B links are 103 usec and 157 usec respectively. The ladder diagram below describes the sending of two consecutive packets from A to B. Label the time intervals (a) through (e) at the right edge, and give the total time for the packets to be sent. packet 1 packet 2 packet 1 packet 2
