Question: Surface A B is a circular arc with a radius of 2 m and a width of 1 m into the paper. The distance E

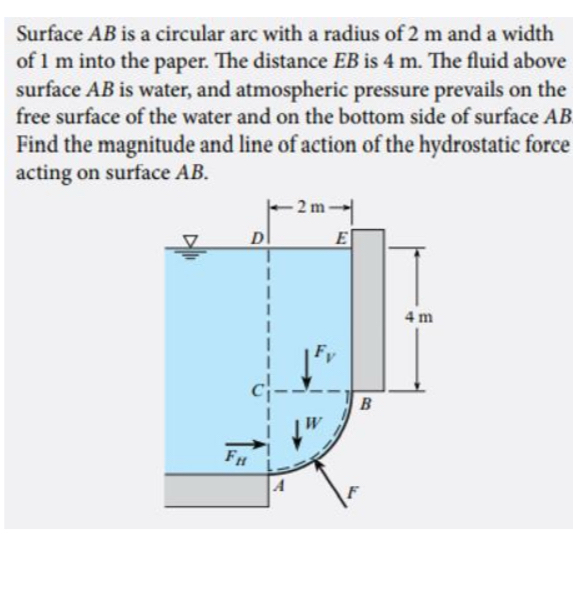

Surface AB is a circular arc with a radius of 2 m and a width
of 1 m into the paper. The distance EB is 4 m . The fluid above
surface AB is water, and atmospheric pressure prevails on the
free surface of the water and on the bottom side of surface AB
Find the magnitude and line of action of the hydrostatic force
acting on surface AB.
