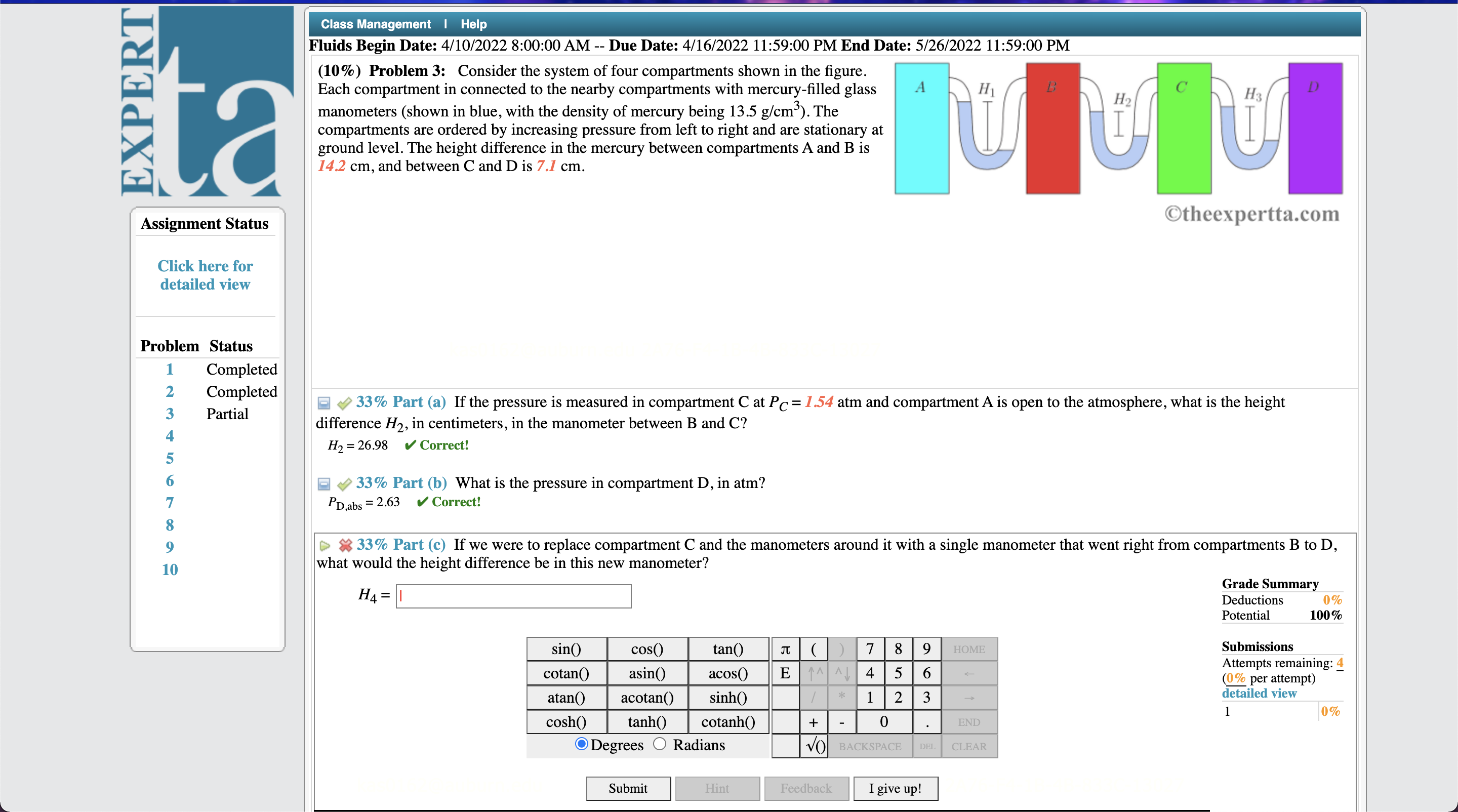

[t A Assignment Status Click here for detailed view Problem Status 1 Completed 2 Completed 3 Partial 4 5 6 7 8 9 10 ClassManagemem I Help Fluids Begin Date: 4/10/2022 8:00:00 AM -- Due Date: 4/16/2022 11:59:00 PM End Date: 5/26/2022 11:59:00 PM (10%) Problem 3: Consider the system of four compartments shown in the gure. Each compartment in connected to the nearby compartments with mercury-lled glass manometers (shown in blue, with the density of mercury being 13.5 g/cm3). The compartments are ordered by increasing pressure from left to right and are stationary at ground level. The height difference in the mercury between compartments A and B is 14.2 cm, and between C and D is 7.1 cm. thccxpcrtta.com E q? 33% Part (a) If the pressure is measured in compartment C at PC = 154 atm and compartmentA is open to the atmosphere, what is the height difference H2, in centimeters, in the manometer between B and C? H2 = 26.98 1' Correct! E c? 33% Part (b) What is the pressure in compartment D, in atm? PM,s = 2.63 v Correct! L> $2 33% Part (c) If we were to replace compartment C and the manometers around it with a single manometer that went right from compartments B to D, what would the height difference be in this new manometer? Grade Summary H4 = l Deductions 0% Potential 100% Submissions Attempts remaining: 5 (M per attempt) detailed view 1 0 % Degrees O Radians Submit Hint Feedback I give up
