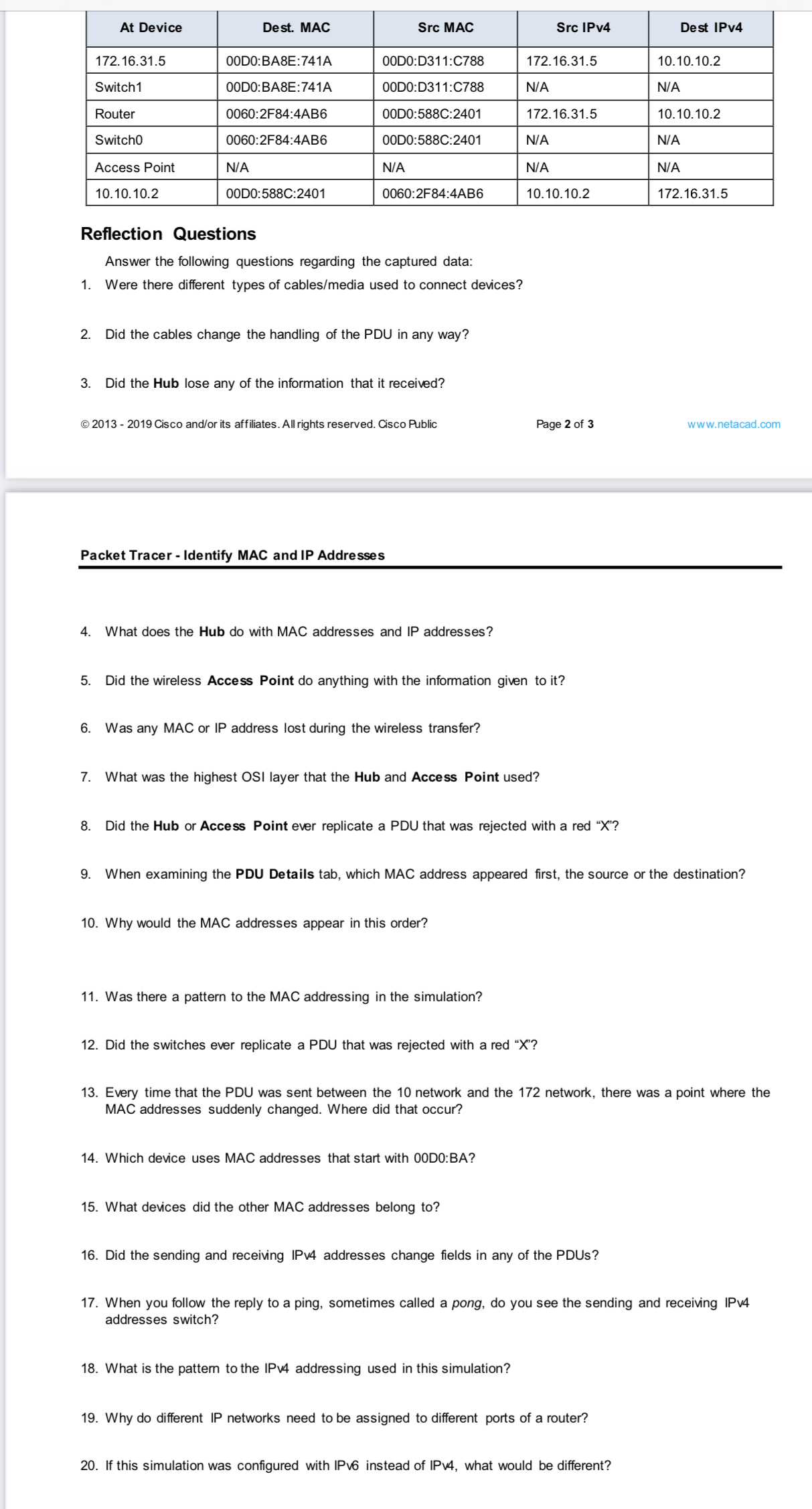

$\backslash$table$[[$At Device,Dest. MAC,Src MAC,Src IPv$4,$Dest IPv$4],[172\mathrm{.}16\mathrm{.}31\mathrm{.}5,00$D$0$:BA$8$E:$741$A$,00$D$0$:D$311$:C$788,172\mathrm{.}16\mathrm{.}31\mathrm{.}5,10\mathrm{.}10\mathrm{.}10\mathrm{.}2],[$Switch$1,00$D$0$:BA$8$E:$741$A$,00$D$0$:D$311$:C$788,$N$/$A$,$N$/$A$],[$Router$,0060$:$2$F$84$:$4$AB$6,00$D$0$:$588$C:$2401,172\mathrm{.}16\mathrm{.}31\mathrm{.}5,10\mathrm{.}10\mathrm{.}10\mathrm{.}2],[$Switch$0,0060$:$2$F$84$:$4$AB$6,00$D$0$:$588$C:$2401,$N$/$A$,$N$/$A$],[$Access Point,N$/$A$,$N$/$A$,$N$/$A$,$N$/$A$],[10\mathrm{.}10\mathrm{.}10\mathrm{.}2,00$D$0$:$588$C:$2401,0060$:$2$F$84$:$4$AB$6,10\mathrm{.}10\mathrm{.}10\mathrm{.}2,172\mathrm{.}16\mathrm{.}31\mathrm{.}5]]$

Reflection Questions

Answer the following questions regarding the captured data:

Were there different types of cables$/$media used to connect devices?

Did the cables change the handling of the PDU in any way?

Did the Hub lose any of the information that it received?

$2013-2019$ Cisco and$/$or its affiliates. All rights reserved. Cisco Public

Page $2$ of $3$

www$.$netacad.com

Packet Tracer $-$ Identify MAC and IP Addresses

$4.$ What does the Hub do with MAC addresses and IP addresses?

$5.$ Did the wireless Access Point do anything with the information given to it$?$

$6.$ Was any MAC or IP address lost during the wireless transfer?

$7.$ What was the highest OSI layer that the Hub and Access Point used?

$8.$ Did the Hub or Access Point ever replicate a PDU that was rejected with a red $"$X$"?$

$9.$ When examining the PDU Details tab, which MAC address appeared first, the source or the destination?

$10.$ Why would the MAC addresses appear in this order?

$11.$ Was there a pattern to the MAC addressing in the simulation?

$12.$ Did the switches ever replicate a PDU that was rejected with a red $"x"?$

$13.$ Every time that the PDU was sent between the $10$ network and the $172$ network, there was a point where the MAC addresses suddenly changed. Where did that occur?

$14.$ Which device uses MAC addresses that start with $00$D$0$:BA$?$

$15.$ What devices did the other MAC addresses belong to$?$

$16.$ Did the sending and receiving IPv$4$ addresses change fields in any of the PDUs?

$17.$ When you follow the reply to a ping, sometimes called a pong, do you see the sending and receiving IPv$4$ addresses switch?

$18.$ What is the pattern to the IPV$4$ addressing used in this simulation?

$19.$ Why do different IP networks need to be assigned to different ports of a router?

$20.$ If this simulation was configured with IPv$6$ instead of IPv$4,$ what would be different?
