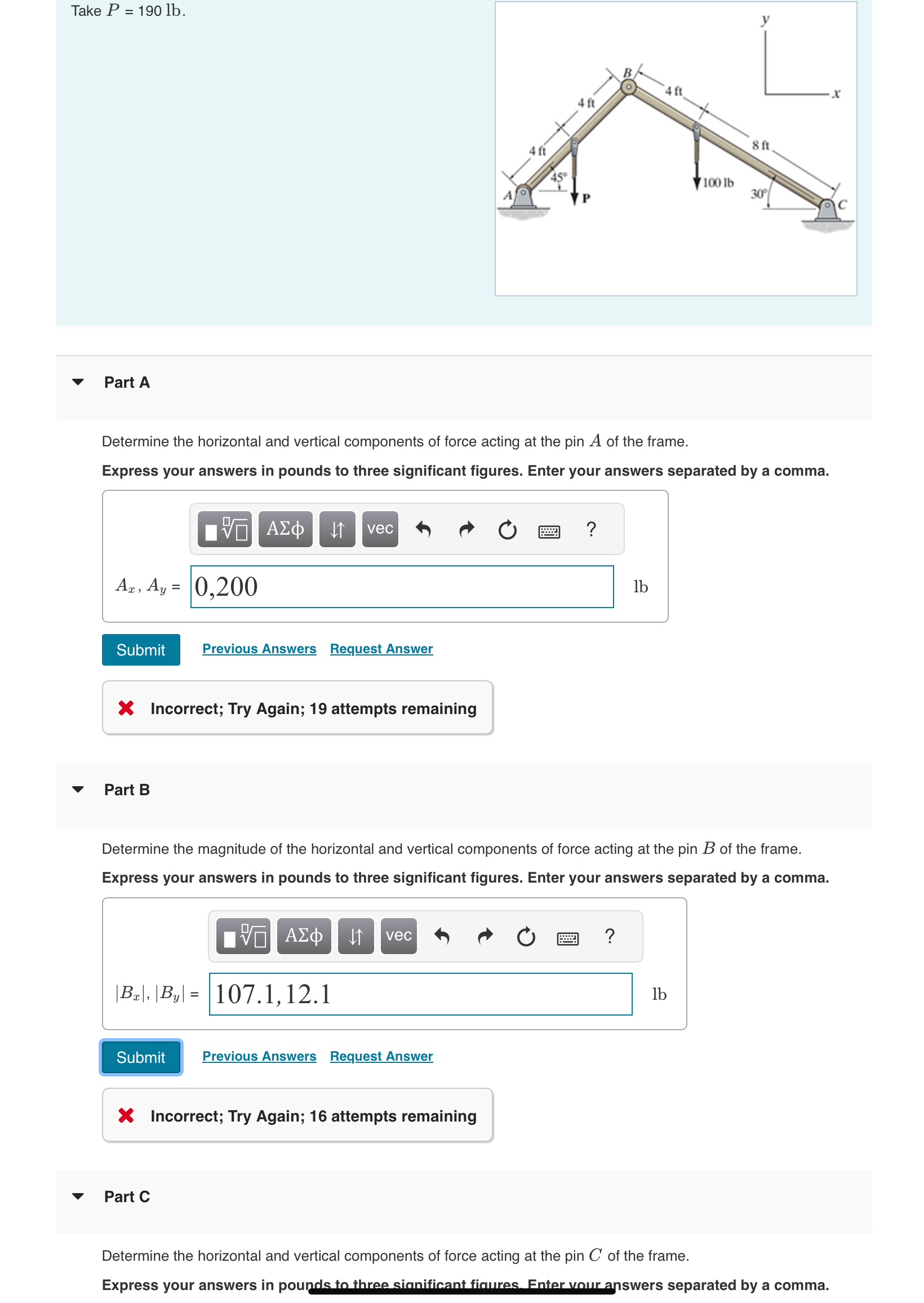

Question: Take P = 1 9 0 l b . Part A Determine the horizontal and vertical components of force acting at the pin A of

Take P=190lb.
Part A
Determine the horizontal and vertical components of force acting at the pin A of the frame.
Express your answers in pounds to three significant figures. Enter your answers separated by a comma.
Incorrect; Try Again; 19 attempts remaining
Part B
Determine the magnitude of the horizontal and vertical components of force acting at the pin B of the frame.
Express your answers in pounds to three significant figures. Enter your answers separated by a comma.
Incorrect; Try Again; 16 attempts remaining
Part C
Determine the horizontal and vertical components of force acting at the pin C of the frame.
Express your answers in pounds to three sianificant fioures.Enter vour answers separated by a comma.
Take P = 1 9 0 l b . Part A Determine the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
