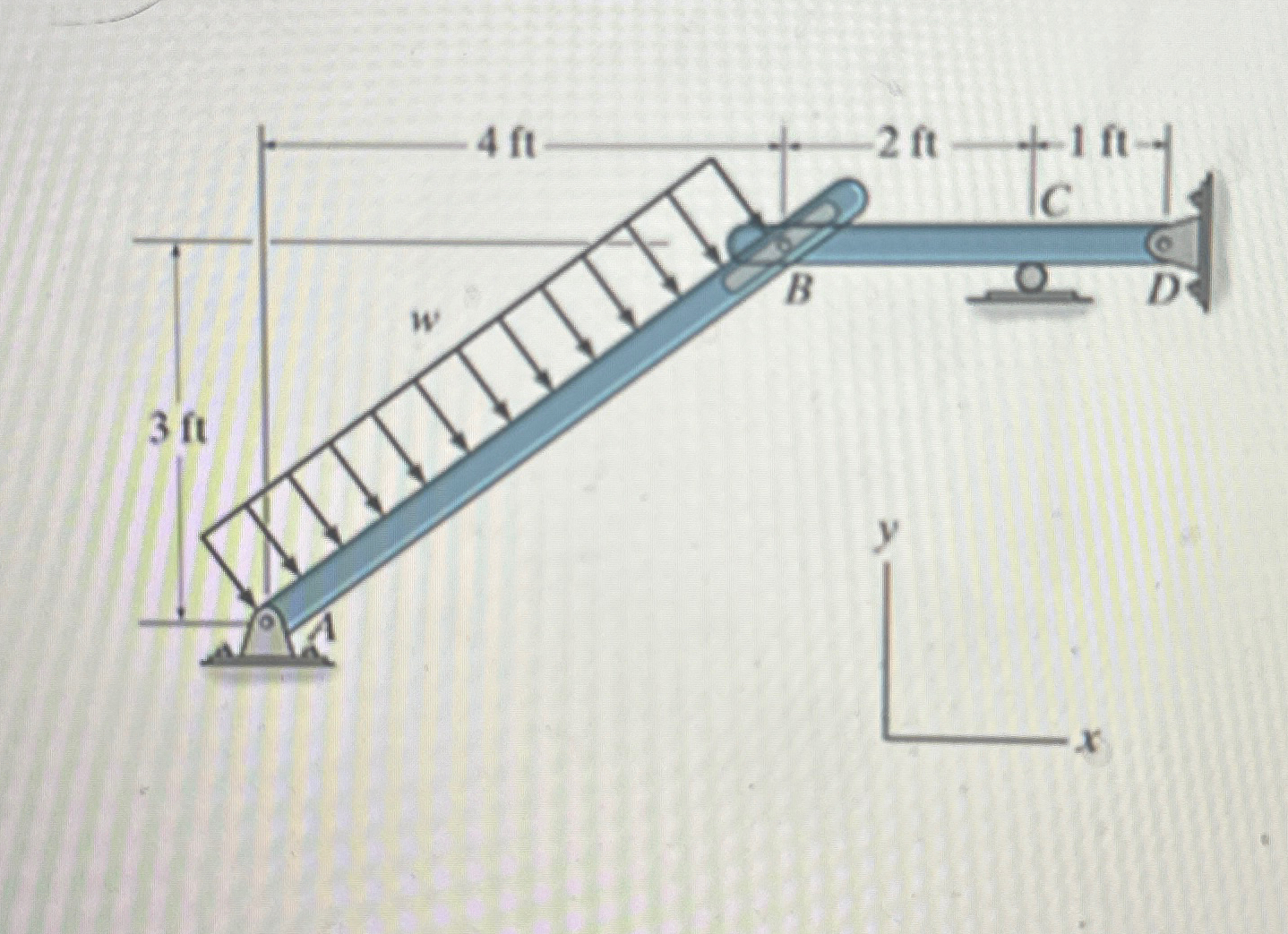

Question: Take w = 1 2 0 lb / ft Determine the components of the reaction at support A , C , & D . Express

Take w =120 lb/ft
Determine the components of the reaction at support A, C, & D. Express your answer in three significant figures.
Take w = 1 2 0 lb / ft Determine the components

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
