Question: Take w = 4 0 0 N m . ( Figure 1 ) Figure 1 of Part A Determine the horizontal and vertical components of

Take w=400Nm.(Figure 1)
Figure
1 of
Part A

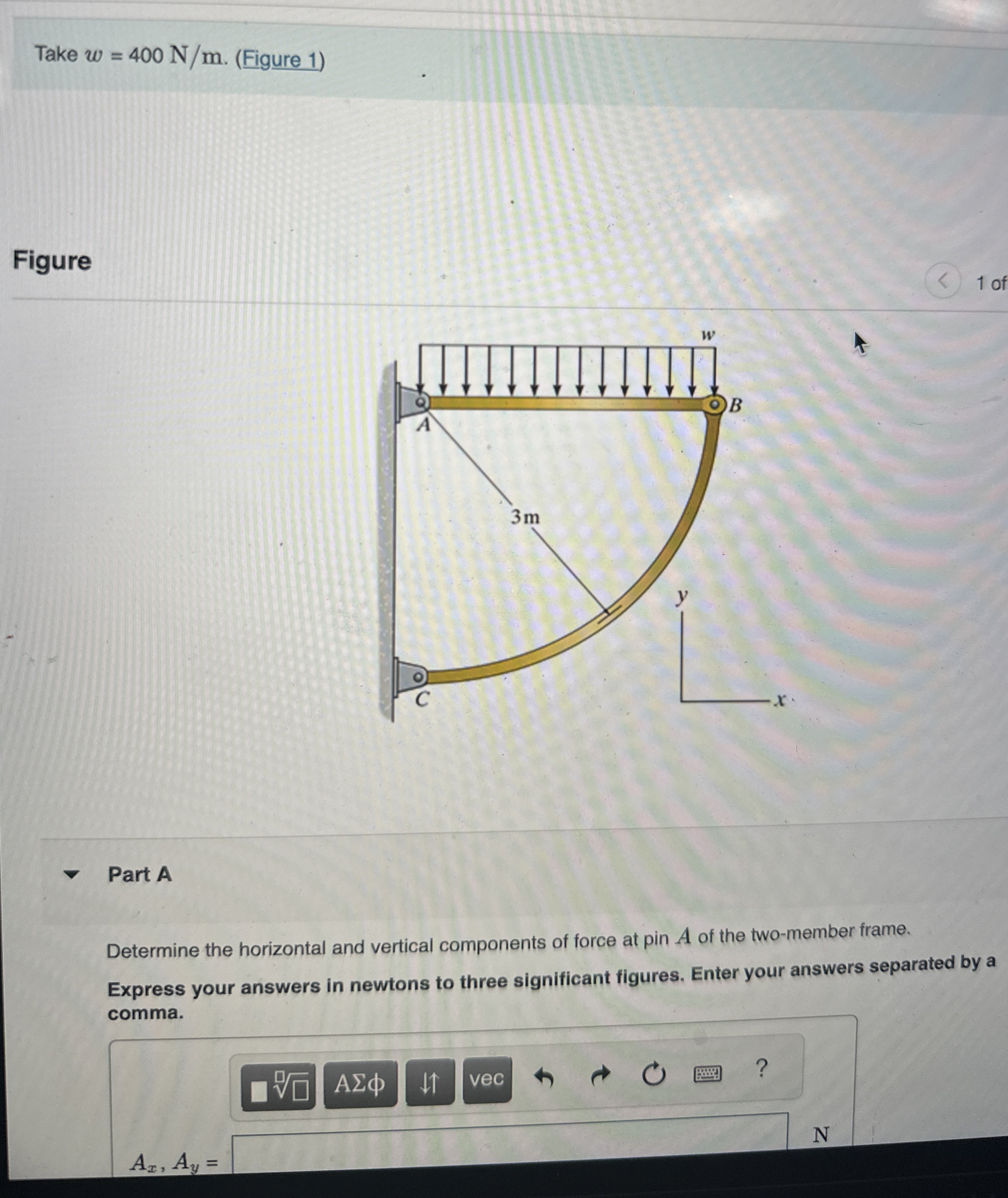

Determine the horizontal and vertical components of force at pin A of the two-member frame.
Express your answers in newtons to three significant figures. Enter your answers separated by a comma.
Ax,Ay=N
Part B
Determine the horizontal and vertical components of force at pin C of the two-member Frame.
Cx, Cy = N
Take w = 4 0 0 N m . ( Figure 1 ) Figure 1 of

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
