Question: Task 1 ? ( 3 Marks ) Using the joints method, determine the force in members A B , B D , B E ,

Task 1?
(3 Marks)

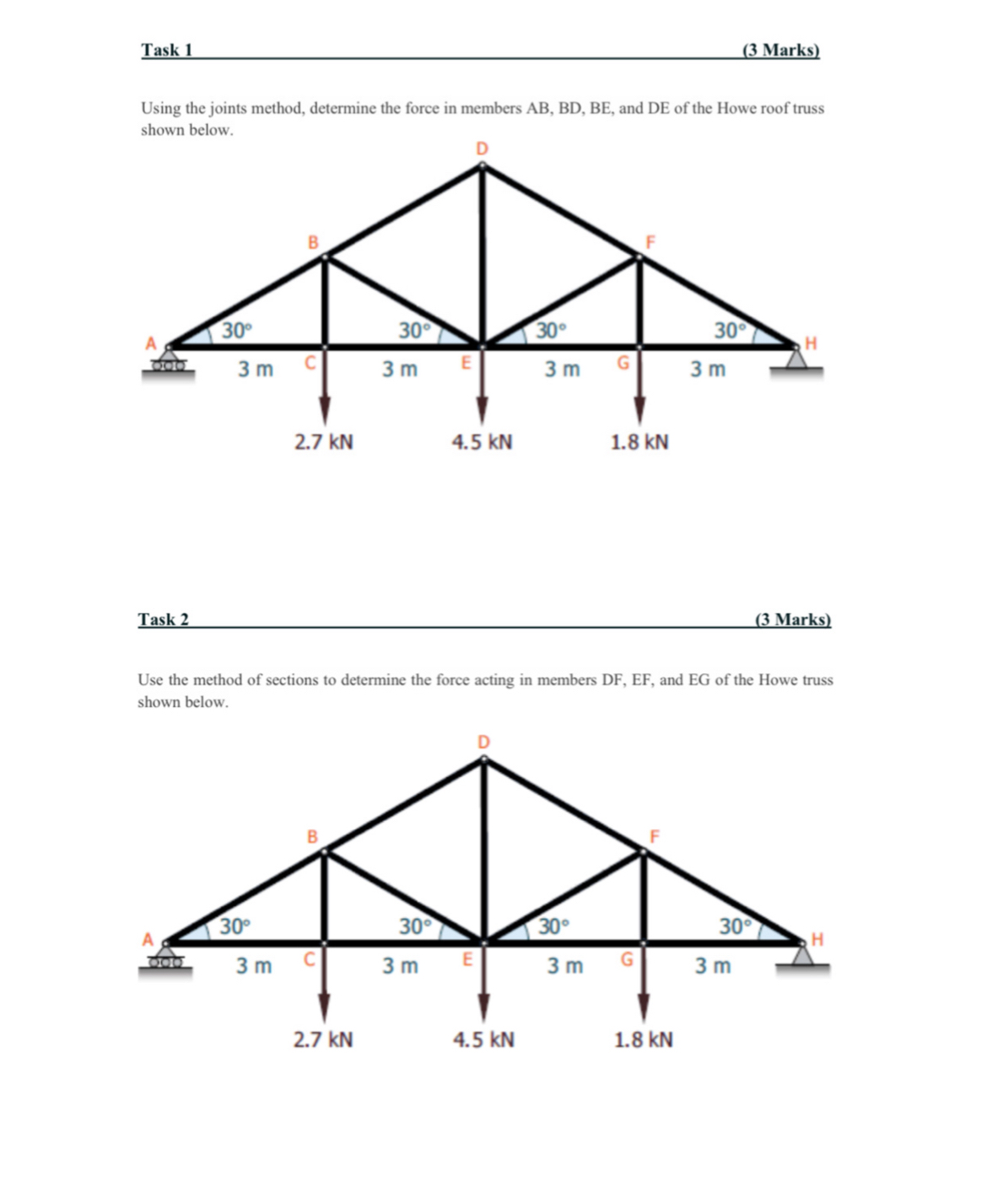

Using the joints method, determine the force in members AB,BD,BE, and DE of the Howe roof truss ehown helow
Task 2
(3 Marks)
Use the method of sections to determine the force acting in members DF, EF, and EG of the Howe truss shown below.
Task 1 ? ( 3 Marks ) Using the joints method,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
